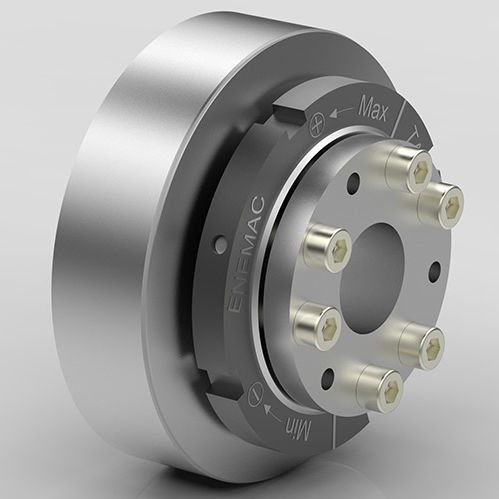

Ball bearing torque limiter ECA seriesfrictioncompact
Add to favorites
Compare this product
Characteristics
- Operation
- ball bearing, friction
- Other characteristics
- compact
- Torque
Max.: 470 Nm
(346.65421 ft.lb)Min.: 0.5 Nm
(0.368781 ft.lb)- Diameter
Max.: 54 mm
(2.13 in)Min.: 6 mm
(0.24 in)- Rotational speed
Max.: 3,000 rpm
(18,849.5559 rad.min-1)Min.: 2,000 rpm
(12,566.3706 rad.min-1)
Description
Torques
0,5–470 Nm
Properties
with integrated ball bearing
successfull standard torque limiter
Applications/Specific features
toothed belt drives
the drive element does not need its own bearing on the shaft
shaft connection with conical hub (or keyway)
• for indirect drives, with integrated ball bearing
• with conical bushing or keyway
• for high radial load, compact performance
