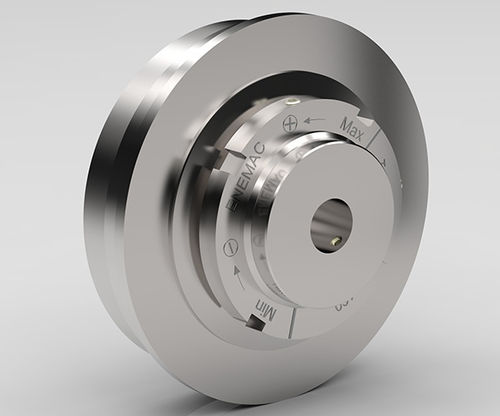

Friction torque limiter ECR Seriesdisc springstainless steel
Add to favorites
Compare this product
Characteristics
- Operation
- friction
- Other characteristics
- disc spring, stainless steel
- Torque
Max.: 350 Nm
(258.1468 ft.lb)Min.: 15 Nm
(11.0634 ft.lb)- Diameter
16 mm, 20 mm, 22 mm, 30 mm, 42 mm
(0.63 in, 0.79 in, 0.87 in, 1.18 in, 1.65 in)- Rotational speed
Max.: 3,000 rpm
(18,849.56 rad.min-1)Min.: 2,500 rpm
(15,707.96 rad.min-1)
Description
Torques
15–350 Nm
Properties
all parts STAINLESS STEEL (including the disc spring)
shaft connection with keyway
Applications/Specific features
drives in the food industry
a slide bearing must be incorporatedin the drive element by the customer
types ECE, ECG and ECI are also available in STAINLESS STEEL
• for indirect drives, with small bearing surface
• easy installation with keyway, compact
• slide bearing required in the attachment ( see installation examples)
• all parts made of stainless steel
