Electric bending machine TB130 tubeprofilebar
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- tube, profile, bar, for pipes
- Displacement
- horizontal
- Control
- NC, digital, semi-automatic
- Other characteristics
- precision, mandrel, mechanical, without mandrel, 3-phase, high-efficiency, cold, rugged, rotary draw
- Bending capacity
Max.: 127 mm
(5 in)Min.: 30 mm
(1.18 in)- Bending radius
Max.: 700 mm
(27.56 in)Min.: 36 mm
(1.42 in)- Overall length
1,145 mm
(45 in)- Overall width
639 mm
(25 in)- Total height
990 mm
(39 in)- Weight
720 kg
(1,587 lb)- Voltage
400 V
- Total power
3.5 kW
(4.8 hp)- Tube diameter
Max.: 127 mm
(5 in)Min.: 30 mm
(1.2 in)
Description

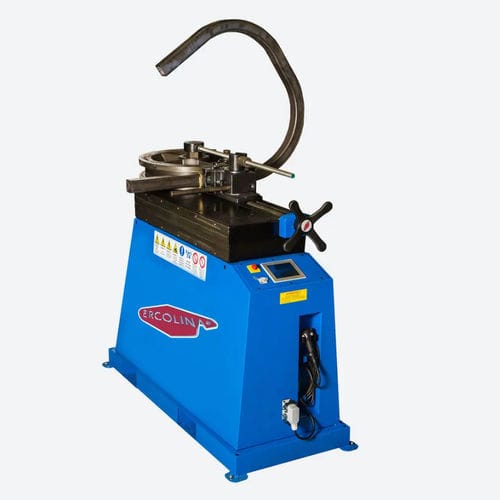

The Ercolina TB130 is an extraordinary tube bending machine, it has a programmable bend speed with the possibility of bending to the right or left, featuring the high-performance TCPlus control which makes this machine irreplaceable!
FEATURES
Equipped with TCPlus Control
7″ color touch screen
Renewed icons for ease of use
Manual bending mode
Advanced OFFSET function
Immediate language change
Auto-tuning of the main machine components
Quick change function from mm to inches and back
Bend Speed programmable for each individual bend of the program.
Possibility of adding Limitless programs on the USB port
Each single program can contain up to 30 bends.
Possibility of bending to the right or left thanks to special tools
