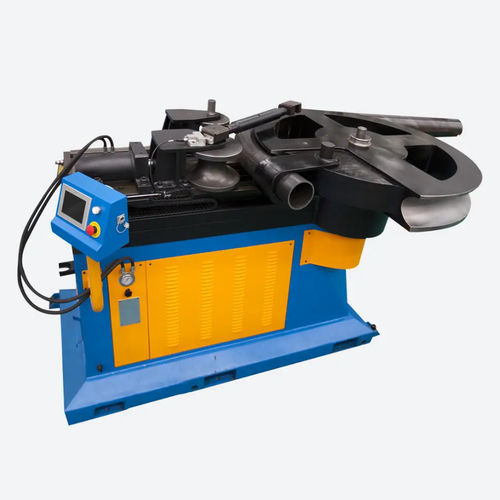

Electro-hydraulic bending machine TB180

tubewith digital assistancenumerical control

Overview
The TB180 is a rotary draw tube bending machine equipped with the TCPlus control, designed for precise bending operations, continuous use and straightforward operation.

FEATURES

• Equipped with TCPlus Control
• 7″ color touch screen
• New icons for improved usability
• Advanced OFFSET function
• Immediate language change
• Auto-tuning of main machine components
• Quick change function between mm and inches
• Bend speed programmable for each individual bend
• Possibility to add unlimited programs via USB
• Optional 2-axis positioner
• Each program can contain up to 30 bends
• Capability to bend to the right or left

Control system (TC PLUS)

• Intuitive and simplified iconography
• 4.3″ display (TC Plus baseline)
• Bend angle programming
• Bend speed setting
• Insertion of compensation value for springback
• Each program can contain up to 30 bends
• Control with manual or programmable mode
• Can bend to the right or left
• Tool database according to the program used
• Immediate language change
• Auto-tuning of main machine components (only on 7″)
• Quick change function between mm and inches
• Ready for Industry 4.0 (optional)
• LAN / Wi‑Fi connection (optional)

Product attributes
Minimum external diameter: ⌀ 10 mm
Maximum bend capacity: ⌀ 150 x 7.1 mm
Control System: TC Plus
Minimum bend radius: 100 mm
Maximum bend radius: 800 mm

Technical specifications

• Flexion modulus: 20 cm³
• Minimum external diameter: 10 mm
• Maximum outer diameter: 60 mm
• Maximum Bend Radius (CLR): 800 mm
• Minimum Bend Radius (CLR): 100 mm
• Maximum bend angle: 210°
• Installed power: 15 kW
• Bend speed: 1 rpm
• Dimensions (L x W x H): 1000 x 1475 x 1900 mm
• Weight: 2700 kg
