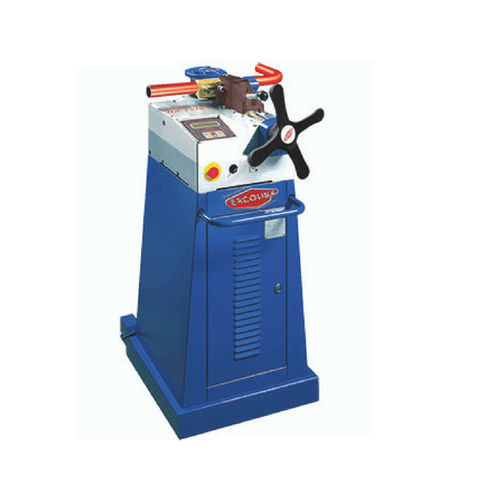

Electric bending machine TB050tubeprofilebar
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- tube, profile, bar, for pipes
- Displacement
- horizontal
- Control
- NC, digital, semi-automatic
- Other characteristics
- precision, compact, mechanical, mobile, without mandrel, 3-phase, cold, rotary draw
- Bending capacity
Max.: 60 mm
(2.36 in)Min.: 5 mm
(0.2 in)- Bending radius
Max.: 300 mm
(11.81 in)Min.: 10 mm
(0.39 in)- Overall length
363 mm
(14 in)- Overall width
900 mm
(35 in)- Total height
595 mm
(23 in)- Weight
130 kg
(287 lb)- Voltage
Max.: 400 V
Min.: 220 V
- Total power
1.5 kW
(2 hp)
Description

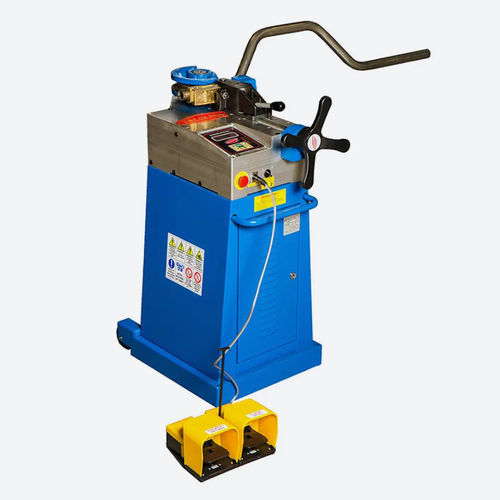

The TB050 is a machine with a thousand surprises, easy to move, available in different versions, with different controls and modes. It has a large Bend Radius and full digital control of all values.
FEATURES
Available with TC Plus, EDT Plus or RC0063 control
Tighter bending radii can be achieved by purchasing (as an option) the core bank
Micrometric control with X-axis position display
Overload control system with flashing warning lights
Possibility of adding an (optional) A40/P 2-axis positioner to allow the mass production of bends on different planes.
Quick and easy tool change system
Easy to move thanks to the built-in wheels and retractable handle.
Foot pedal control
VIDEO
