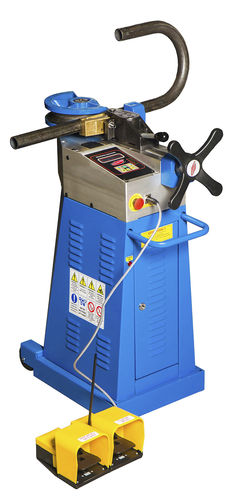

Electric bending machine SB48
tubeprofilebar

Electric bending machine - SB48 - Ercolina - tube / profile / bar
Electric bending machine - SB48 - Ercolina - tube / profile / bar
Electric bending machine - SB48 - Ercolina - tube / profile / bar - image - 2
Add to favorites
Compare this product
Go to the Ercolina website for more information

Characteristics

Operation
electric
Product handled
tube, profile, bar, for pipes
Displacement
vertical
Other characteristics
precision, compact, without mandrel, cold, rotary draw
Bending capacity

Max.: 48 mm
(1.89 in)

Min.: 5 mm
(0.2 in)

Bending radius

Max.: 300 mm
(11.81 in)

Min.: 10 mm
(0.39 in)

Bending angle

Max.: 180 °

Min.: 0 °

Overall length

410 mm
(16 in)

Overall width

1,000 mm
(39 in)

Total height

570 mm
(22 in)

Weight

110 kg
(243 lb)

Voltage

Max.: 400 V

Min.: 110 V

Tube diameter

Max.: 48 mm
(1.9 in)

Min.: 5 mm
(0.2 in)

Description

The SB48 is a revolutionary machine, with compact dimensions, robust structure, and enormous bending capabilities. Available with Three-phase or Single-phase motor. FEATURES Overload control system with flashing warning lights Available with three-phase and single-phase motor Possibility of adapting (optional) a two-axis positioner (A40/P) to allow serial production Simple and fast tool change system (Ercolina® Patent) Easy to move thanks to the built-in wheels and retractable handle. Pedal control
