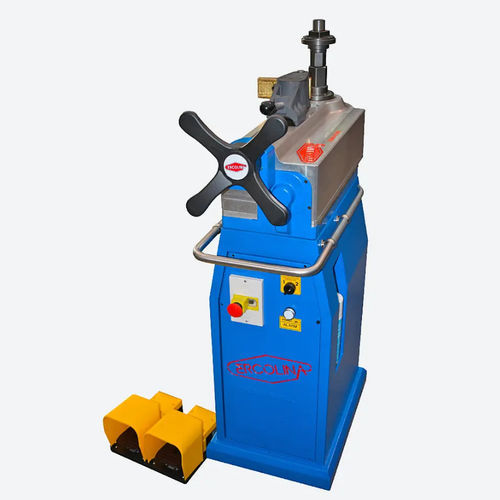

Hydraulic bending machine HB60 series

tubecompactdraw

Description
The HB60 is a rotary draw bender featuring a two-piece robust aluminum body and a mechanical control system. It delivers high power in a compact, fully hydraulic layout. Patent pending.

Features

• High power with a compact design
• Fully hydraulic operation
• Performs 180° bending plus springback compensation in one pass
• Mechanical control system
• Two-piece machine construction
• Sturdy aluminum body

Matrices

• Standard cast iron
• Lightweight cast iron series
• Standard aluminum

Other available models
Model - Description - Power supply
HB60V4-M - Hydraulic - Single-phase
HB60V4-M-KOD1 - Hydraulic with OD1 kit - Single-phase
HB60V4-M-KOD2 - Hydraulic with OD2 kit - Single-phase

Technical specifications

• Bending modulus: 10 cm³
• Minimum external diameter: 5 mm
• Maximum bend capacity: ⌀ 60.3 x 4.5 mm
• Minimum bend radius (CLR): 10 mm
• Maximum bend radius (CLR): 270 mm
• Bend angle control: Mechanical wheel with degree markings
• Dimensions (L x W x H): 470 x 610 x 1055 mm
  302 x 674 x 243 mm (packaged)
• Weight: 76 kg
