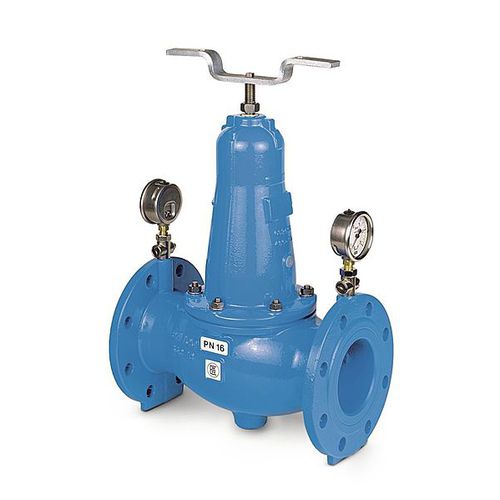

Diaphragm valve DVFpressure-reducingfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Function
- pressure-reducing
- Media
- for water
- DN
Max.: 200 mm
(7.874 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 10 bar
(145 psi)
Description
DN 50 - 200
PN 10 - 16
Body: EN-JS1050
Coating: Epoxy
For converting a higher fluctuating admission, pressure into a lower and constant back pressure in water treatment and distribution installations.
Covers a large pressure range
Guide piston outside the medium, no coating formation
Stable rolling diaphragm for friction and delay-free operation
All internal parts accessible from above, no special tools necessary
