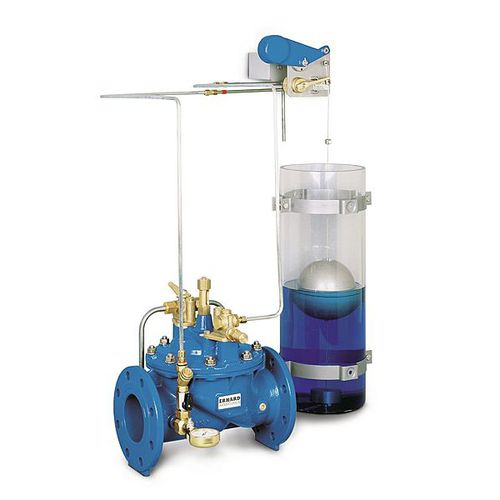

Floating ball valve SVP4 level controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Function
- level control
- Media
- for water
- DN
Max.: 600 mm
(23.622 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 10 bar
(145 psi)
Description
DN 50 - 600
PN 10 - 16
Body: EN-JS1040, EN-JS1050
Coating: Epoxy
For level control of drinking water in water supply and distribution systems.
Operationally reliable control via operating medium
Practice-orientated, large water level adjustment range (50-4000 mm)
Seat outside the cavitation zone
Insensitive to cavitation due to simple open/shut valve
All internal parts accessible from above, maintenance of the control unit without stopping the main valve
Adjustable closing rate for low surge operation
