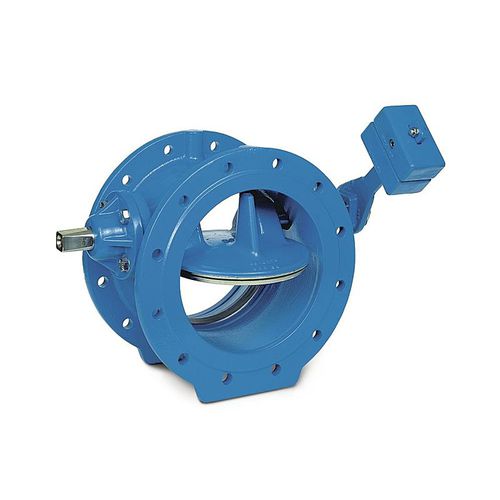

Swing check valve ERKfor water systems
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Applications
- for water systems
- DN
Max.: 1,400 mm
(55.118 in)Min.: 150 mm
(5.906 in)- Pressure
Max.: 25 bar
(362.6 psi)Min.: 10 bar
(145 psi)
Description
DN 150 - 1400
PN 10 - 25
Body: EN-JS1025, EN-JS1030
Coating: Epoxy, Epoxy-Polymer-Ceramic (EPC)
For water in plants, buildings and valve chambers. Also suitable for sewage as of DN 600 and larger.
Practice-proven, weight saving short design
Double-eccentric, freely swinging and flow-optimised tilting disc
Shafts born in maintenance-free, selflubricating sleeve bearings
Rolled-in, solid seating ring of the body, seating ring of the tilting disc with elastic fine sealing
Also available with weight-loaded hydraulic actuator
