Disc check valve EDRV
for water systemscompactspring

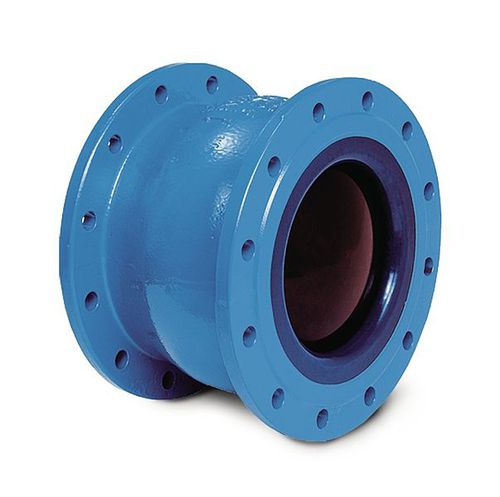

Disc check valve - EDRV - ERHARD - for water systems / compact / spring
Disc check valve - EDRV - ERHARD - for water systems / compact / spring
Disc check valve - EDRV - ERHARD - for water systems / compact / spring - image - 2
Add to favorites
Compare this product

Characteristics

Type
disc
Applications
for water systems
Other characteristics
compact, spring
DN

Max.: 600 mm
(23.622 in)

Min.: 80 mm
(3.15 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 10 bar
(145 psi)

Description

DN 80 - 600 PN 10 - 40 Body: EN-JS1025, EN-JS1030 Coating: Epoxy, Enamel Due to the design, universally usable and particularly effective non-return valves for raw and potable water as well as cleaned sewage. Minimum pressure loss through optimised flow cross-sections Flow-optimised valve disc and valve sealing ring Optimum hydraulics with short closing path to minimise water surge Wide area of application due to compact form, any possible assembly position and adjustable spring strength
