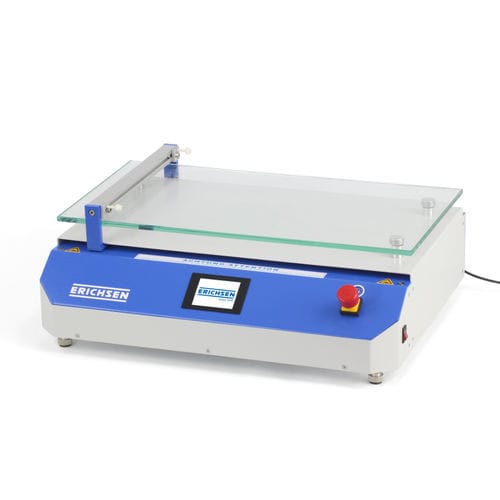

Automatic film applicator COATMASTER 510 Compact-G

vacuumadjustable

The COATMASTER 510 Compact is a compact, microprocessor-controlled automatic film applicator with a touch display for high-precision, reproducible film application on various substrates. It can be equipped with different accessories to meet specific test and production tasks.


Purpose and application
Controlled application of uniform wet films on substrates.
Determination of the relation between wet and dry film thickness.
Production of a large number of identical samples for testing and quality control.


Typical users
Paint and coatings industry (R&D, quality control),
Universities and research institutes (solar cells, fuel cells, battery research),
Laboratories for materials testing and medical device research


Attention
The basic unit is not functional without the appropriate accessories. Order the required accessories together with the basic unit to perform the intended tests or applications.


Technical characteristics / specifications

Drive: Electric

Application length: up to approx. 290 mm

Application speed: freely selectable within the range 1 - 200 mm/s

Application mode: symmetric film applicator operating in one direction with automatic quick return by key press

Width (applicable area): up to 230 mm

Suitable substrates: paper, foil, glass, flexible and rigid substrates

Dimensions (L x W x H): 510 x 380 x 190 mm

Portable / Stationary: Stationary
