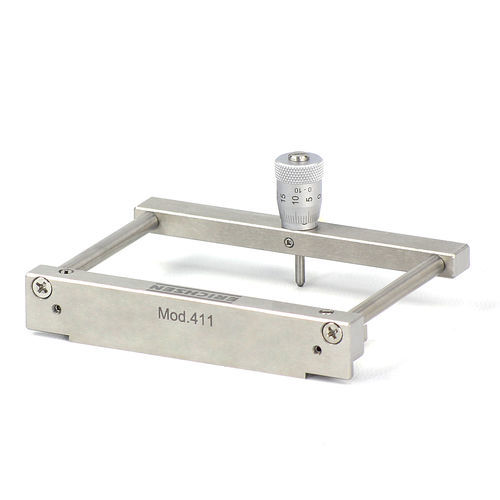

Micrometric film applicator MULTICATOR 411

adjustablestainless steelcasting knife

Overview
The infinitely adjustable film applicator Model 411 applies wet films with a theoretical thickness between 1 and 1000 µm and is used to produce specimen panels with accurately defined dry film thicknesses. The desired gap height is set via one or two micrometer screws; spring strips limit the storage space. The instruments are corrosion-resistant and have application widths of 80 mm / 150 mm / 220 mm.


Application
Production of test panels and coatings evaluation in laboratories and quality control.
Application of wet films with precisely defined gap heights for subsequent drying and measurement.


Accessories
ISO/IEC 17025 accredited calibration – Model 411 (all models);
Manufacturers Test Certificate M acc. to DIN 55 350, Part 18


Technical specifications

Width: 80 mm / 150 mm / 220 mm

Gap Height / Coat Thickness: 1–1000 µm

Number of application gaps: 1

Portability: Portable
