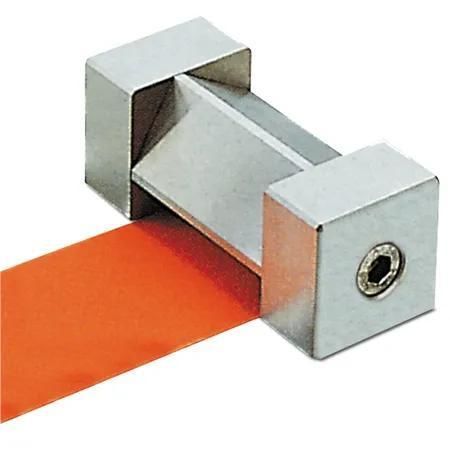

4-sided film applicator Model 284

stainless steelcasting knife

Overview
The Model 284 is a manual film applicator according to BIRD designed to apply reproducible theoretical coating thicknesses using ground doctor-blade edges. It is corrosion-resistant, portable for laboratory use and available in several film widths (50, 75, 100, 150 mm).


Characteristics / Technical specifications

Model / Commercial designation: Model 284 according to BIRD

Material: Steel

Gap heights / Coat thicknesses: 50 µm, 100 µm, 150 µm, 200 µm

Number of application gaps: 4

Available film widths (variants): 50 mm, 75 mm, 100 mm, 150 mm

Corrosion resistance: yes

Portability: portable (laboratory use)
