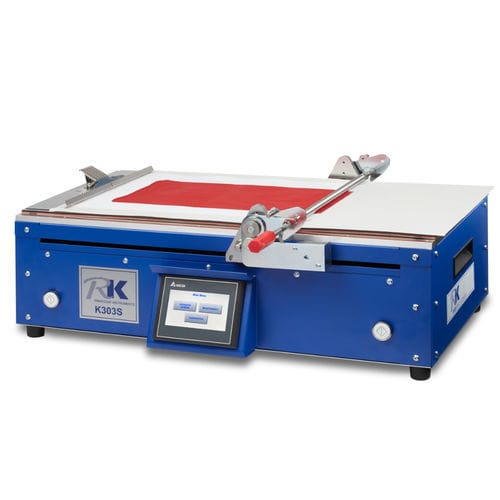

Automatic film applicator K-MULTICOATER-System 625 S (K303S)

wire-wound rodspiral

The K-MULTICOATER-System 625 S (K303S) is a complete film applicator system engineered for accurate, reproducible prints and precise surface coatings across a wide range of products and substrates. It supports interchangeable heads for gravure, flexo and meter bar coatings and enables side-by-side application of multiple samples for direct comparison.


Main features
Redesigned in 2022 with a base unit that includes a fully integrated servo drive and touch screen control;
Easily repeatable samples for reliable comparison;
Interchangeable heads to support different application and printing methods (gravure, flexo, meter bar, spiral squeegee);
Capability to apply multiple coatings side-by-side for direct comparison;
Application area up to 350 x 440 mm (W x L);
Drawdown speed: 1–40 m/min


Technical description (summary)
The K303S enables accurate and reproducible prints and coatings using a wide range of products and substrates; smallest differences can be detected by applying multiple adjacent samples
Supports gravure and flexo printing, meter bar coating, spiral squeegee application and lamination with corresponding accessories


Technical specifications

Drive: Electric

Control: PLC control with integrated touch screen

Test 1: Application with spiral squeegees (corresponding accessories required)

Test 2: Proofs by gravure and flexo printing (corresponding accessories required)

Test 3: Lamination (corresponding accessories required)

Application area (W x L): 350 x 440 mm

Drawn down speed: 1 - 40 m/min

Portable / Stationary: Stationary
