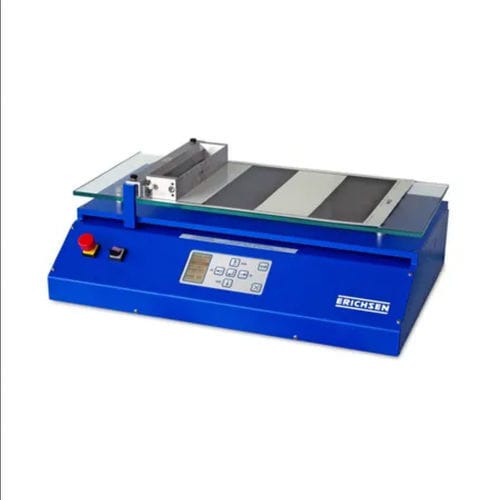

Automatic film applicator COATMASTER 510 Basic

adjustable

Description The motorized film applicator COATMASTER 510 Basic-G is a compact testing instrument with a membrane keyboard. With appropriate accessories it can be used as a high-precision film applicator. The microprocessor-controlled step motor drive ensures precise and uniform draw-downs and repeatable results.

Key features

• Microprocessor-controlled step motor drive for precise control and repeatability
• Membrane keyboard (compact control panel)
• Variable application path up to approx. 400 mm
• Individually programmable start position
• Selectable draw-down speed in the range 10–100 mm/s
• Automatic quick return by key press
• Film applicator operates symmetrically in both directions

Purpose and application
The device is used when an absolutely uniform film thickness across a surface is required, when reliable information on the wet-to-dry film thickness relationship is needed, or when a large number of identical samples must be produced. The automatic draw-down method avoids inaccuracies of manual application. Typical users include the coatings and paint industry (R&D and quality control), universities and research institutes (e.g. photovoltaic, fuel cell and battery research) and medical technology research.

Scope of delivery

• Film applicator COATMASTER 510 Basic-G
• Glass plate
• Attachment assembly for doctor blade
• Wide-range power supply unit 100–240 V, 50/60 Hz

Technical data

• Drive: Electric, microprocessor-controlled step motor
• Maximum usable width: up to 230 mm
• Substrate: Paper, foil, glass; suitable for rigid and flexible substrates
• Draw-down speed: 10–100 mm/s
• Application length: up to 400 mm
• Portable / Stationary: Stationary
• Test tracks / test positions: up to 7
