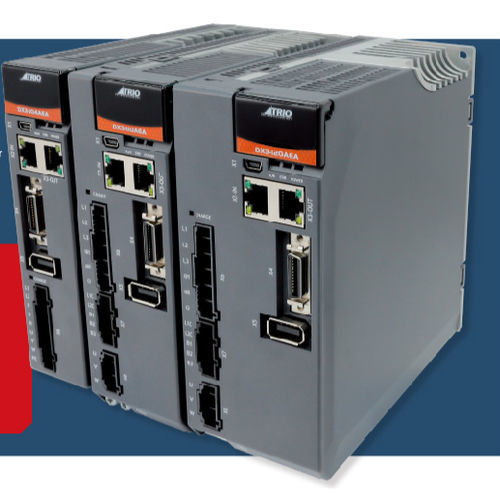

AC servo-drive DX3

single-axisEtherCATCANopen

DX3, the single-axis ac servo drive, is designed to create the most cost-effective optimised entry level solution with excellent performance and practical control functions. The Trio DX3 drive is compatible with Trio MX servo motors and Trio Motion Coordinators to provide high-speed, high-précision, high performance machine solutions. With a power range from 50W to 7.5kW and options for EtherCAT or Conventional (Puise & Direction, Analogue and CANopen) control, DX3 will suit a wide variety of machine types. DX3 is fully integrated into Trio’s appication development tool, Motion Perfect, our software environment for system planning, configuration, virtualisation and machine programming. ATAGLANCE *Fully integrated into Motion Perfect *Matched virith MX motor range *Internal drive protection fonctions *Comprehensive tuning technology *field upgradable firmware *Electronic nameplate *Compact size *Zéro stacking *USB commissioning *Keypad interface *200V ac from 50W to 2kW *400V ac from 1kW to 7.5kW *350% overtoad *2 Touch Probe inputs *Preset positions, up to 32 stored positions - Corwentional drives only (no Motion Coordinator required) *EtherCAT or Cocventional (Puise & Direction. Analogue. CANopen) control
