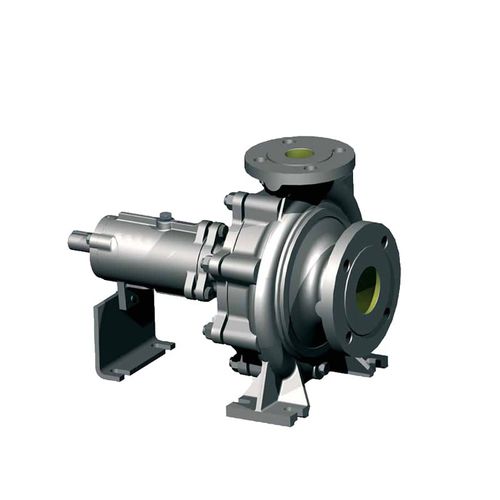

Hot water pump EACD

oilwith combustion enginecentrifugal with volute

Hot Thermal Oil Process, Surface Pumps EACD pumps are designed for diathermic fluids having a max. temperature of 350°C. No cooling of the seal chamber is required; the installation of auxiliary flushing can then be avoided. Mechanical seal is in accordance with DIN 24960. These pumps, fitted with special mechanical seal device, can be used with hot water up to 170°C. Construction: EACD pumps, in bare shaft version, have a standard process type design: single stage, single volute casing; axial suction, top radial discharge; radial impeller, with axial thrust balancing holes; separate bearing housing, with one plane bearing lubricated by the pumped liquid and one grease lubricated axial thrust resistant ball bearing. Details FlangeDIN 2332 (std), PN 16RF Materials Cast Iron, Ductile Iron, Bronze, Stainless Steel, Carbon Steel, Hastelloy MountingBare Shaft, Engine Driven, Closed Coupled (EJM) Specifications DN50 - 150 Qup to 350 m3/h O.Pup to 16 bar Hup to 100m Nsup to 3,600rpm tFluids Max. Temp. : 350 °C Hot Water. Temp. : Up to 150 °C Applications Industrial Process Petroleum Boiler Hot Water Transfer Hot Oil Transfer Heat and Cooling Transfer Synthetic Oil Mineral Oil
