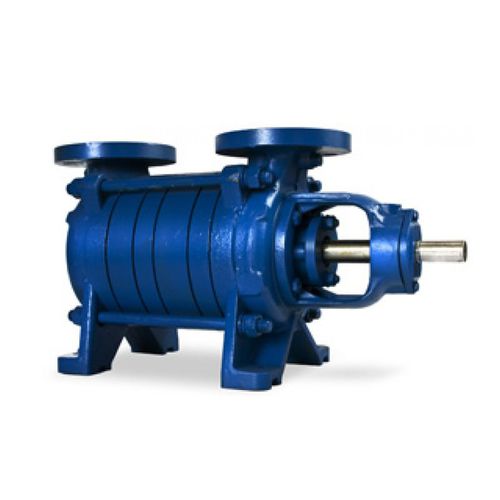

Condensate pump EOH

with electric motorself-primingvane

Horizontal Multistage, Surface Pumps EOH are Horizontal Multistage Vane pump. Self Priming in construction and suitable to handle 2 phase fluid with up to 20% gas mixture. This pump are used for clean fluid with small flow and high head, where normal centrifugal pumps will fail. The in-between bearing enable the pump to withstand high pressure, low noise and suitable for low NPSHa. Details FlangeDIN 2512 (std), ANSI B16.5B (optional) Materials Cast Iron, Ductile Iron, Bronze, Stainless Steel MountingBare Shaft, Direct Coupled with Electric Motor or Engine, Monobloc Specifications DN32 - 80 Q0.3 to 30m³/h O.P10 bar H310m Ns2900rpm- 50Hz, 3550rpm- 60hz tup to 110ºC Applications Boiler Feed Pump Condensate Pump Booster Pump Jocky Pump Chemical Spraying or Coating Petro-Chemical Industry OEM for Machinery
