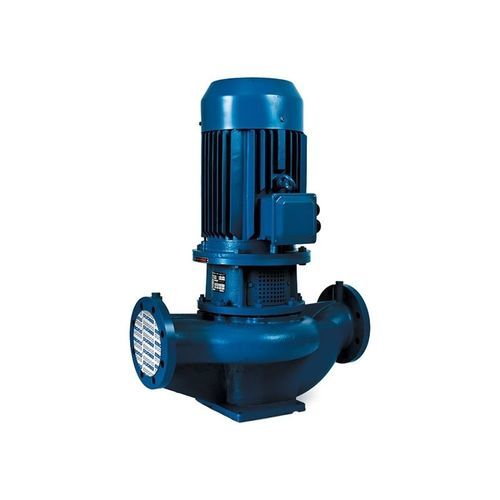

Water pump EILM series with electric motorboosted primingcentrifugal
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- with electric motor
- Priming
- boosted priming
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial, for water treatment
- Applications
- discharge, cooling, circulation, booster, firefighting
- Material
- cast iron, bronze
- Other characteristics
- suction, small, close-coupled, in-line, vertical
- Flow
1,080 m³/h
(38,139.84006 ft³/h)- Pressure
10 bar
(145.038 psi)- Head
125 m
(410'01" )- Fluid temperature
Max.: 100 °C
(212 °F)Min.: -10 °C
(14 °F)
Description
Vertical Inline Pump, closed coupled design, ideal for limited space.
Materials : Cast Iron/ Ductile Iron/ Bronze/ SS304/ SS316
Flange : DIN 2501 (std)/ ANSI B16.5B (optional)
Applications :
Cold & Hot water Circulation
General Industrial
HVAC & Cooling Tower
Booster Pump
