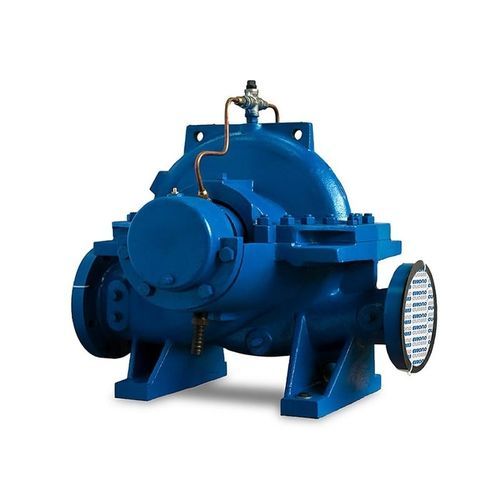

Water pump ESC/V
with electric motorimpellerindustrial

water pump
water pump
Add to favorites
Compare this product


Characteristics

Media
water
Operation
with electric motor
Technology
impeller
Domain
industrial, agriculture
Applications
firefighting, irrigation, cooling
Material
cast iron
Other characteristics
single-stage, horizontal mount, suction, double, split-case, vertical
Flow

Max.: 18,000 m³/h (635,664.001 ft³/h)

Min.: 0 m³/h (0 ft³/h)

Pressure

Max.: 25 bar (362.594 psi)

Min.: 0 bar (0 psi)

Head

Max.: 180 m (590'06")

150 m (492'01")

Min.: 0 m (0'00")

Description

Single Stage Double Suction,Horizontal Split / Mounting in Horizontal or Vertical Position, Surface Pump Horizontal Split casing, Single stage, Double suction impeller with in-between bearing design, allows pumps run quietly and with minimal vibration. Coupled with dynamically balanced impeller the pumps life is greatly prolonged and therefore, increase MTBF (Mean Time Between Failure). This allows the pump to be mounted Horizontally and also, vertically to save spaces. Details FlangeANSI B16.5B (optional), DIN 2501 RF (std) Materials Cast Iron, Ductile Iron, Stainless Steel MountingBare Shaft, Direct Coupled with Electric Motor or Engine Specifications DN50 - 1000 Qup to 18,000m³/h O.Pup to 25bar H150m; up to 180m (optional) Ns1450 - 2950rpm (50hZ), 1750 - 3550rpm (60hZ) tup to 105ºC Applications HVAC and Cooling Tower Municipal Water Supply Marine and Ship Building Power Plant Irrigation and agriculture Fire fighting
