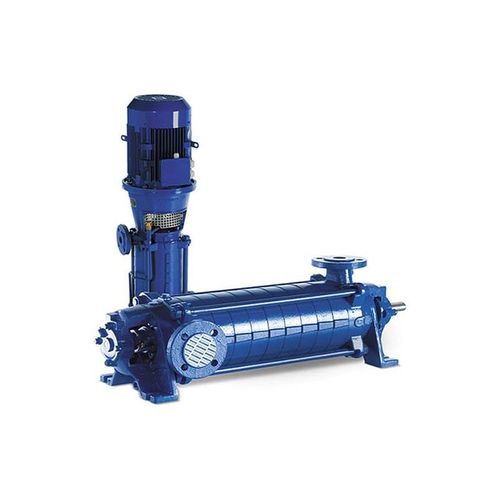

Water pump EMS series
with electric motorcentrifugalindustrial

water pump
water pump
Add to favorites
Compare this product


Characteristics

Media
water
Operation
with electric motor
Technology
centrifugal
Domain
industrial
Applications
discharge, high-pressure
Material
stainless steel, cast iron, bronze
Other characteristics
multi-stage, horizontal mount, suction, close-coupled, in-line, vertical
Flow

500 m³/h (17,657.3334 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 50 bar (725.189 psi)

Head

400 m (1312'04")

Description

High Pressure Horizontal/Vertical Multistage, Surface Pumps EMS Series are vertically or Horizontally mounted multistage high pressure pump in segmented construction with opposing suction and discharge port of same nominal width or in-line-execution possible. It is capable of multi discharge construction upon request. Details FlangeANSI B16.5B (optional), DIN 2498 (std) Materials Stainless Steel, GG25(Cast Iron), G-CuSn10(Bronze) MountingBare Shaft, Engine Driven, Closed Coupled (EMSM) Specifications DN32 - 200 Q500m³/h O.Pup to 40bar (std); 50bar (optional) H400m Ns1450 - 2950rpm (50hZ), 1750 - 3550rpm (60hZ)
