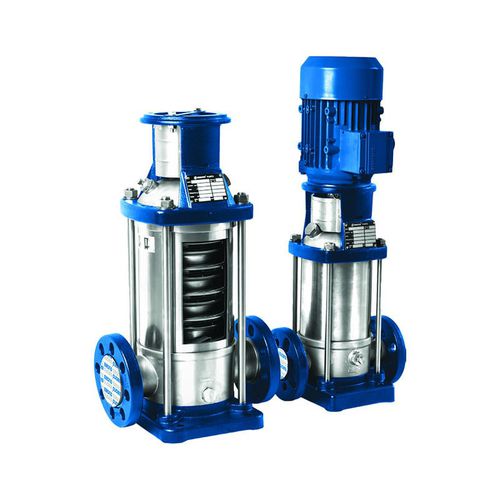

Water pump EMV/S/K series
with electric motorcartridgeindustrial

water pump
water pump
Add to favorites
Compare this product


Characteristics

Media
water
Operation
with electric motor
Technology
cartridge
Domain
industrial, for water treatment, agriculture
Applications
firefighting, irrigation, washing, cleaning, process
Material
stainless steel, cast iron
Other characteristics
with mechanical seals, horizontal mount, with flange, vertical, heating
Flow

Min.: 0.2 m³/h (7.0629 ft³/h)

Max.: 120 m³/h (4,237.76 ft³/h)

Pressure

Min.: 0 bar (0 psi)

Max.: 24 bar (348.091 psi)

Head

Min.: 0 m (0'00")

Max.: 330 m (1082'08")

Description

High Pressure, Horizontal/Vertical Multistage, Surface Pumps EMV/S/K series are vertical multistage, Stainless Steel construction, inline pot position with flange designed according to DIN or ANSI 16.5B standard or Victalulic coupling. Standard pumps are fitted with motor according to IEC, with motor efficiency Class EF1; EF2 or NEMA frame upon request. All Pumps are fitted with cartridge type mechanical seal for easy chage out without removing motor and adapter or the pipes (EMV32 and above) and Laser Weld impeller for strength and material intagrity(EMV20 and Above). Details FlangeDIN/ANSI/JIS (slip-on type) Materials Stainless Steel 304 or 316 with Cast iron or Stainless steel base MountingVertical Specifications DN25 - 100 Q0.2 to 120m³/h O.Pup to 24 bar Hup to 330m Ns2950rpm (50hZ), 3550rpm (60hZ) t-20ºC to 120ºC Applications Water supply and pressure boosting for buildings, water stations, water supply network Irrigation and agriculture Washing and cleaning systems Fire fighting systems Process water systems Water treatment systems Heating, ventilation and air-conditioning RO water and desalination application

Catalogs

No catalogs are available for this product.
