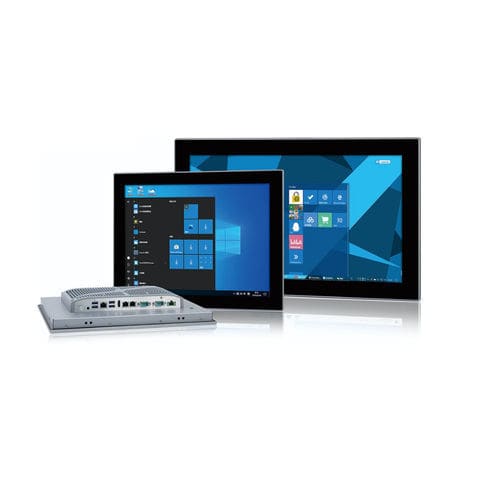

Resistive touch screen panel PC EVI-PPC-J6412

PCAP capacitive touch screen15"17"

The SmartPanel is a new generation industrial Panel PC designed for supervision, process control, and automation applications. It incorporates Intel Celeron J6412 or Intel Atom x6425E processor platforms, adapted to the performance and reliability requirements of industrial environments, often in a fanless version for quiet and continuous operation. Available with a projected capacitive (PCAP) or resistive touch screen, it adapts to field constraints: use with gloves, dusty environments, thin interfaces, etc. Ideal for integration into cabinets, consoles, or machines, it provides a robust base for your GTB/GTC, HMI, SCADA, production line, or operator station applications. Main applications: Supervision and control of production lines and machines BMS/CMS, building automation, energy and industrial processes Operator interfaces (HMI) in workshops, factories or control rooms Industrial workstations for ERP, MES, SCADA, control/command software.


Key features: Intel Celeron J6412 / Atom x6425E processors: modern, high-performance platforms for industrial use Choice of PCAP or resistive touchscreen: adaptable to the type of use and environment (gloves, precision, etc.) Industrial design: 24/7 operation, robust chassis, integration into cabinets or consoles Windows/Linux compatibility (depending on configuration): ideal for supervision, automation, and HMI software Solution designed for integrators and OEMs in automation, special machines, and smart buildings.


Intel Celeron J6412 / Atom X6425E Capacitive PCAP / Resistive Screen (Optional) LCD Size: 10.1“ / 12.1” / 13.3“ / 15” / 15.6“ / 17” / 17.3“ / 18.5” / 19“ / 21.5” / 23.8 (Optional) System CPU: Intel Elkhart Lake Celeron J6412 Quad-core 2.0GHz / Intel Atom X6425E Quad-core 2.0GHz L2 Cache: 1.5MB System Chipset: Integrated with Intel SoC Memory: 2 × DDR4 SO-DIMM, up to 32GB Hard disk: 1 × mSATA 128G SSD (250G / 500G / 1TB SSD) / 1 × 2.5” SATA Graphics: Intel UHD Graphics Gen11 Processor Network: Intel i225-V 2.5GbE LAN Audio: Realtek ALC888S HD Audio controller TPM: TPM 2.0 Watchdog Timer: Software Programmable Supports 1–255 sec. System Reset Operation System: Windows 10 / 11, Linux, Ubuntu I/O VIDEO: 1 × HDMI / 1 × DP LAN: 2 × LAN (10/100/1000/2500 Mbps) USB: 4 × USB3.0 COM: 4 × RS-232 / 422 / 485 (Adjustable through BIOS) Audio: 1 × Audio Out & Mic_in Wireless Network: Optional (WiFi / Bluetooth / 4G / 5G) Expansion M.2: 1 × M.2 (Key-E, 2230, PCIeUSB, WiFiBT) M.2: 1 × M.2 (Key-B, 3042/3052, USB2.0, 4G/5G) SIM Socket: 1 × SIM Socket SmartPanel Industrial Panel PC - PCAP / Resistive Touchscreen - Intel Celeron J6412 / Atom x6425E
