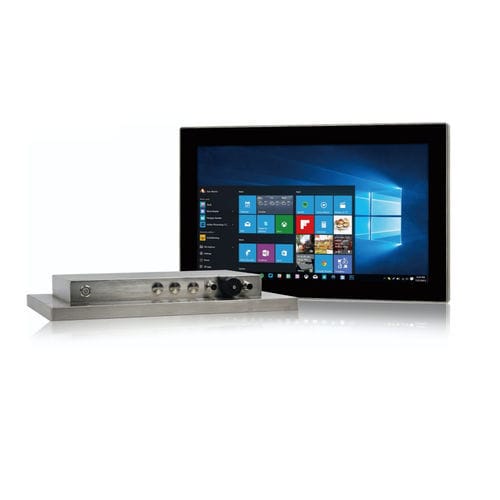

PCAP capacitive touch screen monitor EVI-IHM-INOX

resistive touch screenindustrial15.6"

The SmartPanel IP66/IP69K stainless steel is a waterproof industrial monitor made of stainless steel, specially designed for environments subject to strict hygiene, cleaning, and corrosion resistance requirements: food processing, beverages, pharmaceuticals, cosmetics, chemicals, clean rooms, etc. Its stainless steel casing and IP66/IP69K protection rating enable it to withstand frequent high-pressure washing, industrial detergents, and humid or corrosive environments. Available with a projected capacitive (PCAP) or resistive touchscreen, it adapts to your needs: use with gloves, precision or tactile comfort for operator interfaces (HMI), supervision, and line control. Combined with an industrial PC or embedded PC, it provides a complete and hygienic HMI solution for your installations.


Main applications: Production lines in the food, beverage, slaughterhouse, and dairy industries Pharmaceuticals, cosmetics, chemicals, clean rooms, and sterile environments Processes subject to high-pressure washing or frequent cleaning


Supervision, process visualization, HMI operator interfaces, BMS/CMS, SCADA.


Key features:
Stainless steel housing: excellent resistance to corrosion, cleaning products, and harsh environments IP66/IP69K: high protection against water, splashes, high-pressure jets, and dust
PCAP or resistive touchscreen: choice of panel type depending on use (gloves, precision, touch comfort)
24/7 industrial design: reliability for critical and hygienic processes Ideal for integrators and OEMs in the food industry, hygienic processes, chemicals, and harsh environments


IP66/IP69K SmartPanel stainless steel industrial monitor - PCAP/resistive touch screen.


Stainless steel industrial monitor Stainless steel monitor PCAP capacitive / Resistive screen (Optional) LCD Size: 12.1“ / 13.3” / 15.6“ / 21.5” (Optional) I/O • Video: 1 × Waterproof Connector For HDMI / VGA (Optional) • USB: 1 × M12 Waterproof Connector For Touch USB 2.0 • Other I/O Interface: 1 × Power Switch Power • Power Adapter: 1 × Optional AC/DC 12V/5A, 60W • Power Input: 1 × M12 Waterproof Connector For 12V–24V DC • Power Consumption: 30W Touch Screen • Touch Type: Optical Bonding PCAP Touch • Surface Hardness: ≥7H Environment • Operating Temperature: -20C ~ 70C (-4F ~ 158F) • Storage Temperature: -30C ~ 80C (-22F ~ 176F) • Relative Humidity: 5%–95% 40C, non-condensing • Vibration Protection: 1.5 Grms, IEC 60068-2-64, random, 5–500 Hz, 1 hr/axis • IP Level: IP66 / IP69K • EMC: CE, FCC, Class A, RoHS
