HMI with touch screen EVI-IHM-44-60

panel-mountVGAIntel® Celeron J1900

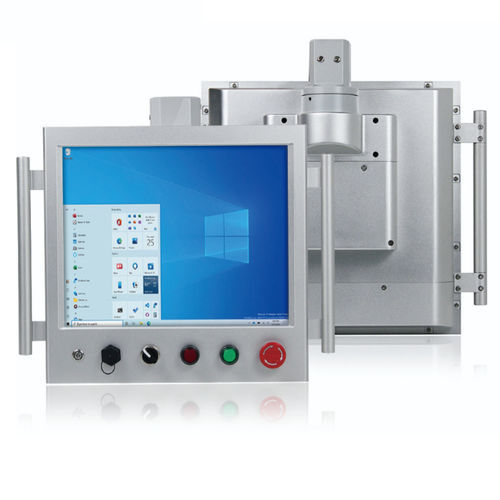

SmartPanel 44-60 Series fanless industrial Panel PC - control panel with lightweight suspension system


The SmartPanel 44-60 Series is a range of fanless industrial Panel PCs designed as control panels for production lines, special machines, and operator stations. The fanless design limits dust accumulation, reduces maintenance, and ensures quiet and reliable 24/7 operation in industrial environments. Thanks to their lightweight suspension system, these Panel PCs can be easily installed on an arm, bracket, or structure above the workstation, providing an ergonomic and unobstructed operator interface as close as possible to the process.


Main applications: Control panel for production lines and special machines Operator interface (HMI) in workshops, factories, or control rooms Automation, building management systems, process supervision and control Compact industrial workstations for SCADA, MES, ERP, and business applications.


Key features:
Fanless design: less maintenance, better performance in dusty environments, quiet operation
Lightweight suspension system: easy installation on arms or structures, improved operator ergonomics
Control panel format: ideal for HMIs close to the machine or line
Industrial PC platform: designed for continuous use in demanding professional environments SmartPanel 44-60 Series range tailored to the needs of integrators and OEMs in automation, special machines, and production lines


Control panel – 44-60 Series Fanless design — Lightweight suspension system System • CPU: Intel Celeron J1900 / J6412 / 8th Gen i3 • Memory: 1 × DDR3L or 2 × DDR4 SO-DIMM (up to 32 GB) • Storage: 1 × SATA, 1 × mSATA • Graphics: Intel HD / UHD Graphics • Network: 2 × LAN (10/100/1000 Mbps) • TPM: TPM 2.0 • OS: Windows 10 / 11, Linux, Ubuntu I/O • VIDEO: 1 × HDMI and 1 x VGA • LAN: 2 × LAN • USB: 4 × USB • Audio: 1 × Line-out • Ports: Other waterproof connectors available on request.
