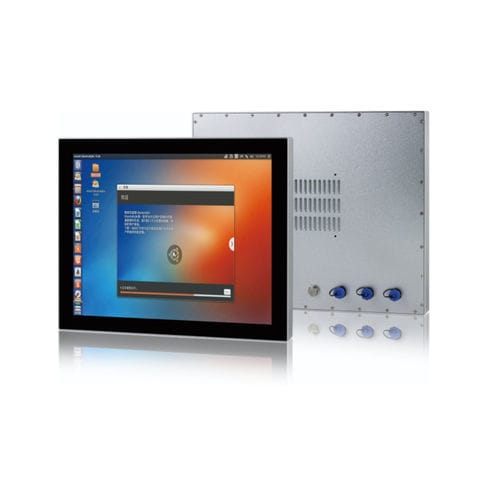

PCAP capacitive touch screen monitor EVI-IHM-IP69K

resistive touch screenindustrial15"

IP66/IP69K SmartPanel waterproof industrial monitor - PCAP/resistive touchscreen


The IP66/IP69K SmartPanel is a waterproof industrial monitor designed for the most demanding environments: food processing, pharmaceuticals, cosmetics, chemicals, clean rooms, processes subject to high-pressure washing, etc. Its design allows it to withstand water splashes, high-pressure jets, and dusty environments, while offering an easily cleanable surface to meet hygiene and safety requirements. Available in projected capacitive (PCAP) or resistive touch versions, it adapts to your needs: use with gloves, precision or tactile comfort for operator interfaces (HMI), supervision, or production line control. Combined with an industrial PC or embedded PC, it provides a complete HMI solution for your installations.


Main applications: Production lines in the food, beverage, slaughterhouse, and dairy industries Pharmaceuticals, cosmetics, chemicals, clean rooms Processes subject to frequent washing or high pressure


Supervision, process visualization, HMI operator interfaces, BMS/CMS, SCADA


Key features:
IP66/IP69K protection rating: suitable for intensive washing, humid and harsh environments


PCAP or resistive touchscreen: choice of panel type depending on use (gloves, precision, comfort)
Industrial design: continuous 24/7 operation in demanding environments
Dedicated industrial monitor: to be combined with a PC/IPC for a customized HMI solution Ideal for integrators and OEMs in the food processing, hygienic processes, chemical, and harsh environments industries.


Waterproof industrial monitor Aluminum alloy shell. PCAP/resistive capacitive screen (optional) LCD size: 12.1“/15”/17“/19”/21.5“/23.8” (optional) I/O • Video: 1 × waterproof connector for HDMI/VGA (Optional) • USB: 1 × SP13 Waterproof Connector For Touch USB 2.0 • Other I/O Interface: 1 × Power Switch Power • Power Adapter: 1 × Optional AC/DC 12V/5A, 60W • Power Input: 1 × SP13 Waterproof Connector For 12V–24V DC • Power Consumption: 30W Touch Screen • Touch Type: Optical Bonding PCAP Touch • Surface Hardness: ≥7H Environment • Operating Temperature: -20C ~ 70C (-4F ~ 158F) • Storage Temperature: -30C ~ 80C (-22F ~ 176F) • Relative Humidity: 5%–95% 40C, non-condensing • Vibration Protection: 1.5 Grms, IEC 60068-2-64, random, 5–500 Hz, 1 hr/axis • IP Level: IP66 / IP69K • EMC: CE, FCC, Class A, RoHS
