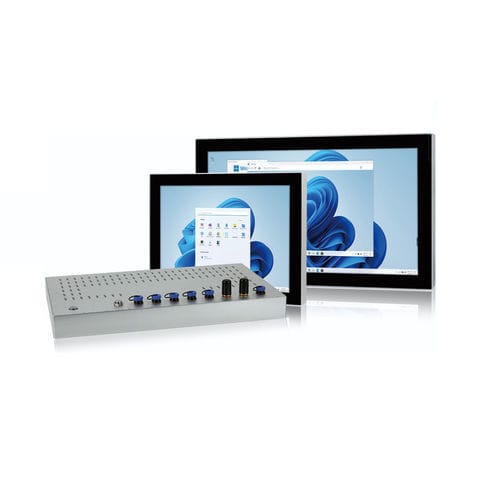

Resistive touch screen panel PC EVI-PPC-WP2

PCAP capacitive touch screen15"17"

SmartPanel waterproof industrial panel PC - capacitive touchscreen - aluminum alloy shell


The waterproof SmartPanel is an industrial Panel PC designed for demanding environments requiring enhanced hygiene, frequent cleaning, or high protection against water and dust. Its aluminum alloy shell gives it excellent mechanical robustness and a finish suitable for industrial, food processing, or pharmaceutical sectors. Its capacitive touch screen (PCAP) offers comfortable and smooth use, with good responsiveness for operator interfaces (HMI), supervision, or machine control. Designed for 24/7 operation, it can be easily integrated into cabinets, consoles, production lines, or walls.


Main applications: Production lines in humid or dusty environments Food processing, beverages, hygienic processes Pharmaceuticals, cosmetics, chemicals, clean rooms Operator interfaces (HMI), supervision, and process control.


Key features:
Aluminum alloy shell: robust, professional finish, corrosion resistant Capacitive touchscreen: smooth operation for HMI and supervision interfaces
Waterproof design (IP65/IP66/IP69K rating depending on version): suitable for frequent cleaning and harsh environments
Industrial PC platform: 24/7 operation, designed for critical applications Ideal for integrators and OEMs in automation, process control, food processing, and hygienic environments.


Key features:
Aluminum alloy shell: robust, professional finish, corrosion resistant Capacitive touchscreen: smooth operation for HMI and supervision interfaces
Waterproof design (IP65/IP66 rating depending on version): suitable for frequent cleaning and harsh environments
Industrial PC platform: 24/7 operation, designed for critical applications Ideal for integrators and OEMs in automation, process control, food processing, and hygienic environments.


Industrial Waterproof Panel PC (aluminum shell) Waterproof Panel PC – New generation aluminum shell Capacitive PCAP / Resistive screen (Option) LCD Size: 15“ / 15.6” / 17“ / 18.5” / 19“ / 21.5” / 23.8 System • CPU: 12th/13th Gen Intel Core i3/i5/i7 • Chipset: Integrated Intel SoC • Memory: 2 × DDR5 4800 MHz SO-DIMM, up to 64 GB • Storage: 1 × mSATA/1 × SATA/1 × M.2 (NVMe SSD) • Graphics: Intel Iris Xe Graphics • Network: 2 × Intel I226-V 2.5 GbE 1 × I219 1 GbE • Audio: Realtek ALC897 • TPM: TPM 2.0 • OS: Windows 10/11, Linux, Ubuntu • Watchdog Timer: 255 Levels programmable I/O • VIDEO: 1 × HDMI (Option) • LAN: 2 × RJ45 Waterproof • USB: 2 × USB2.0 (waterproof M12) • COM: 1 × Waterproof COM • Audio: 1 × Audio Out & Mic_in • Ports: Waterproof M12 I/O Connectors Expansion • M.2: Key-E (WiFi / BT) • M.2: Key-B (4G / 5G) • M.2: Key-M (NVMe SSD) • SIM Socket: 1 × SIM Slot
