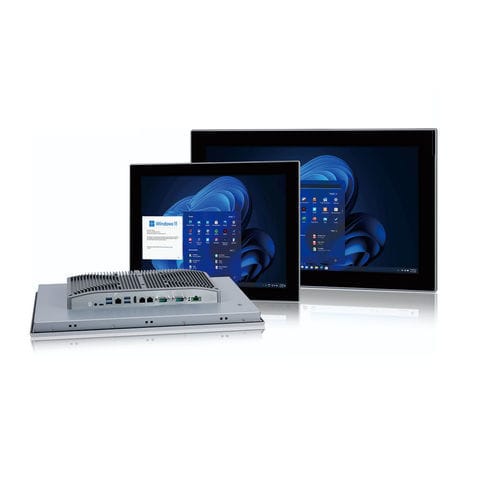

Resistive touch screen panel PC EVI-PPC-CORE-12-13

PCAP capacitive touch screen15"17"

The Intel Core 12th/13th Gen SmartPanel is a high-performance industrial Panel PC designed for supervision, process control, automation, special machinery, and edge computing applications. Equipped with 12th or 13th generation Intel Core processors, it offers computing power suitable for advanced graphical interfaces, real-time visualization, data management, and intensive processing in industrial environments. Available with a projected capacitive (PCAP) or resistive touchscreen, it adapts to field constraints: use with gloves, precision requirements, demanding environments. Designed for integration into cabinets, consoles, or machines, it is ideal for your GTB/GTC, SCADA, MES, HMI, and operator station projects.


Main applications: Supervision and control of production lines and special machines GTB/GTC, building automation, energy, industrial processes Operator interfaces (HMI) in workshops, factories, or control rooms Industrial edge computing, local data processing, pre-AI/vision
Key strengths:
12th/13th Gen Intel Core processors: high performance for demanding applications PCAP or resistive touchscreen: choice depending on use (gloves, precision, environment)
Industrial design: 24/7 operation, robust chassis, integration into cabinets or consoles
Windows/Linux compatibility (depending on configuration): ideal for supervision software, automation, SCADA, MES Solution designed for integrators and OEMs in automation, smart buildings, and high-end industrial equipment.


Industrial Panel PC 12th/13th Gen Intel Core Capacitive PCAP / Resistive (Option) LCD Screen Size: 12.1“ / 15” / 15.6“ / 17” / 18.5“ / 19” / 21.5“ / 23.8” / 31.5 System • CPU: 12th Generation Intel Core i3-1215U 1.2 GHz | 12th Generation Intel Core i5-1235U 1.3 GHz | 12th Generation Intel Core i7-1255U 1.7 GHz • L3 Cache: 10 MB / 12 MB / 12 MB • Graphics: Intel UHD Graphics / Intel Iris Xe Graphics • TDP: 15 W • System Chipset: Integrated with Intel SoC • Memory: 2 × DDR5 4800 MHz SO-DIMM, up to 64 GB • Hard Disk: 2 × M.2 120 GB SSD (250 GB / 500 GB / 2 TB SSD) • Network: 2 × Intel I226-V 2.5 GbE / 1 × Intel I219 1 GbE • Audio: Realtek ALC 897 Audio Controller • TPM: TPM 2.0 • Watchdog Timer: 255 Timer Levels, Set up by Software • Operating System: Windows 10 / 11, Linux, Ubuntu I/O • VIDEO: 1 × HDMI • Ethernet: 3 × RJ45 • USB: 4 × USB 3.2 1 × Type-C × 1 (USB 3.0 Gen 2, DP 1.4) • COM: 2 × RS-232 / 422 / 485 (Adjustable through BIOS) • Audio: 1 × Audio Out & Mic_in • Wireless Network: Optional (WiFi / Bluetooth / 4G / 5G) Expansion • M.2: 1 × M.2 (Key-E, 2230, PCIe USB, WiFi BT) • M.2: 1 × M.2 (Key-B, 3042 / 3052, PCIe USB 3.0 USB 2.0, 4G / 5G) • M.2: 2 × M.2 (Key-M, 2280, NVMe / SATA SSD) • SIM Socket: 1 × SIM Socket SmartPanel Industrial Panel PC - PCAP / Resistive Touchscreen - Intel Core 12th/13th Gen
