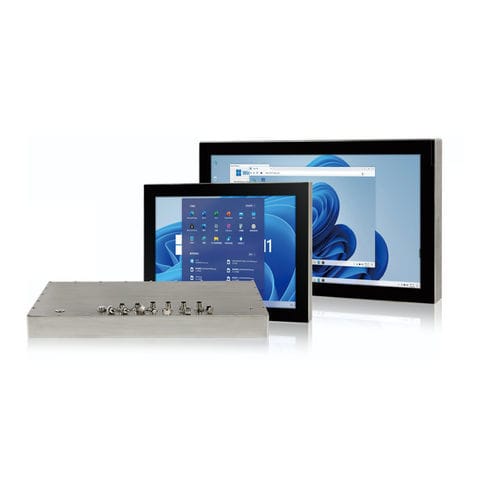

PCAP touchscreen panel PC EVI-PPC-INOX-WP2

resistive touch screen15.6"21.5"

The SmartPanel stainless steel is an industrial waterproof Panel PC specially designed for environments requiring strict hygiene, frequent washing, and high corrosion resistance. Its SS316 stainless steel shell (new generation) makes it perfectly suited to the food, pharmaceutical, chemical, and maritime industries. Its capacitive touch screen (PCAP) offers smooth and precise operation for operator interfaces (HMI), supervision, and process control. Thanks to its waterproof design (IP65/IP66 rating depending on version), the Panel PC can be cleaned with water, jets, and detergents suitable for industrial processes.


Main applications: Agri-food industry, beverages, slaughterhouses, dairies Pharmaceuticals, cosmetics, chemicals, clean rooms Maritime environments, corrosive areas, saline processes HMI operator interfaces, supervision, line control/command


Key features:
SUS304/SUS316 stainless steel shell: excellent resistance to corrosion and cleaning products
Capacitive touch screen: ease of use for HMI, SCADA, and supervision
Waterproof design (IP65/IP66 depending on version): suitable for high-pressure washing and humid environments
Industrial PC for 24/7 operation: reliability for critical processes Ideal solution for integrators and OEMs in the food processing, hygienic processes, chemical, and harsh environments industries.


Waterproof Panel PC (new generation SS316 stainless steel) Waterproof Panel PC – New generation stainless steel (NEW) Capacitive PCAP / Resistive screen (optional) LCD Size: 15“ / 15.6” / 17“ / 18.5” / 19“ / 21.5” / 23.8 (optional) System • CPU: 12th/13th Gen Intel Core i3/i5/i7 • Chipset: Integrated Intel SoC • Memory: 2 × DDR5 4800 MHz SO-DIMM, up to 64 GB • Storage: 1 × M.2 NVMe SSD / 1 × SATA / 1 × mSATA • Graphics: Intel Iris Xe Graphics • Network: 2 × Intel I226-V 2.5 GbE • Audio: Realtek ALC897 HD Audio • TPM: TPM 2.0 • Watchdog Timer: 255 Levels programmable • OS: Windows 10 / 11, Linux, Ubuntu I/O • VIDEO: 1 × HDMI • LAN: 3 × Waterproof RJ45 • USB: 4 × USB3.0 waterproof M12 • COM: 2 × RS-232 / 422 / 485 waterproof • Audio: 1 × Line-out / 1 × Mic-in Expansion • M.2: Key-E (WiFi / BT) • M.2: Key-B (4G / 5G) • M.2: Key-M (NVMe SSD) • SIM Socket: 1 × SIM Slot Reference: EVI-PPC-INOX-WP2
