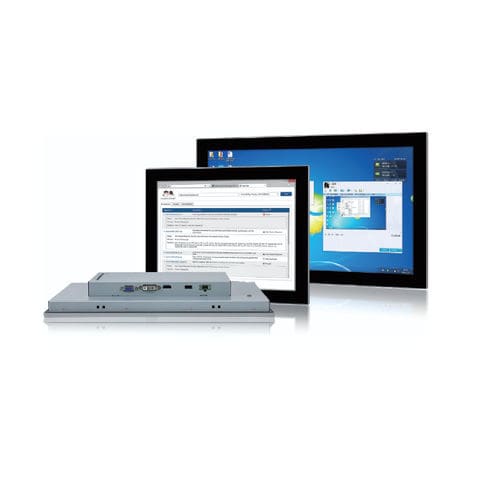

PCAP touchscreen monitor EVI-IHM-ALU

resistive touch screenindustrial15.6"

IP66 SmartPanel industrial monitor - PCAP capacitive or resistive touchscreen - aluminum alloy shell


The IP66 SmartPanel industrial monitor is a robust touchscreen designed for demanding environments: manufacturing, food processing, pharmaceuticals, chemicals, clean rooms, etc. Its aluminum alloy shell provides excellent mechanical strength and corrosion resistance, while facilitating cleaning and integration on machines or facades. Available in projected capacitive (PCAP) or resistive touch versions, it is suitable for field use: use with gloves, precision requirements, operator interface (HMI), supervision, or simple display. IP66 protection (front panel, depending on configuration) provides resistance to dust and water splashes, and even regular washing. This monitor can be used with an existing industrial PC or embedded PC to build a complete HMI solution tailored to your process.


Main applications: Display and operator interface (HMI) on production lines Food, beverage, pharmaceutical, and cosmetics industries Clean rooms, humid or dusty environments


Supervision, process visualization, BMS/CMS, SCADA


Key features: IP66 (front panel, depending on version): suitable for frequent cleaning and harsh environments Aluminum alloy shell: robust, durable, and professional finish
PCAP or resistive touchscreen: choice of panel type depending on use (gloves, precision, touch comfort)
Dedicated industrial monitor: to be combined with an existing PC or IPC for customized HMI solutions Ideal for integrators and OEMs in automation, special machines, food processing, and hygienic processes.


Industrial monitor Aluminum alloy shell Capacitive (PCAP) or resistive (optional) screen LCD Size: 10.1“ / 12.1” / 13.3“ / 15” / 15.6“ / 17” / 17.3“ / 18.5” / 19“ / 21.5” / 23.8 (optional) I/O • VGA: 1 × VGA • HDMI: 1 × HDMI • DVI: 1 × DVI • USB: 1 × Touch USB • Other I/O Interface: 1 × OSD Control Key Power • Power Adapter: 1 × Optional AC/DC 12V/4A, 48W • Power Input: 2-pin Terminal Block Connector with Power Input 12–24VDC • Power Consumption: 30W Environment • Operating Temperature: -20C ~ 70C (-4F ~ 158F) • Storage Temperature: -30C ~ 80C (-22F ~ 176F) • Relative Humidity: 5%–95% 40C, non-condensing • Vibration Protection: 1.5 Grms, IEC 60068-2-64, random, 5–500 Hz, 1 hr/axis • IP Level: Front Panel IP66 • EMC: CE, FCC, Class A, RoHS, IEC / EN 62368-1
