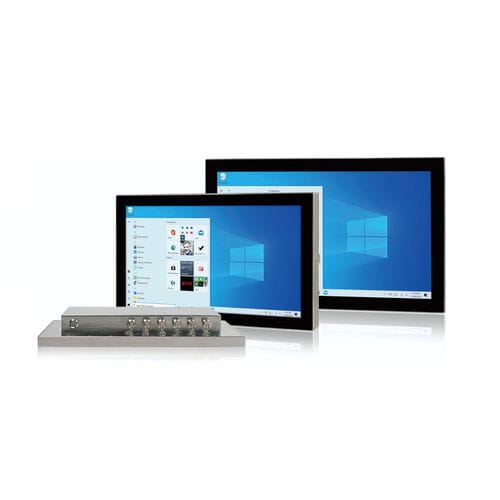

PCAP touchscreen panel PC EVI-PPC-INOX-WP1

resistive touch screen15"21.5"

The SmartPanel stainless steel is an industrial waterproof Panel PC specially designed for environments requiring strict hygiene, frequent washing, and high corrosion resistance. Its SUS304 or SUS316 stainless steel shell makes it ideal for the food, pharmaceutical, chemical, and maritime industries. Its capacitive touch screen (PCAP) offers smooth and precise operation for operator interfaces (HMI), supervision, and process control. Thanks to its waterproof design (IP65/IP66/IP69K rating depending on version), the Panel PC can be cleaned with water, jets, and detergents suitable for industrial processes.


Main applications: Agri-food industry, beverages, slaughterhouses, dairies Pharmaceuticals, cosmetics, chemicals, clean rooms Maritime environments, corrosive areas, saline processes HMI operator interfaces, supervision, line control/command


Key features:
SUS304/SUS316 stainless steel shell: excellent resistance to corrosion and cleaning products
Capacitive touch screen: ease of use for HMI, SCADA, and supervision
Waterproof design (IP65/IP66 depending on version): suitable for high-pressure washing and humid environments
Industrial PC for 24/7 operation: reliability for critical processes
Ideal solution for integrators and OEMs in the food processing, hygienic processes, chemical, and harsh environments industries.


Industrial Waterproof Panel PC (SS304/SS316 stainless steel shell) Waterproof Panel PC – SS304 stainless steel shell / SS316 Capacitive PCAP / Resistive Screen (Optional) LCD Size: 8.4“ / 10.1” / 12.1“ / 13.3” / 15“ / 15.6” / 17“ / 17.3” / 19“ / 21.5” / 23.8 (Optional) System • CPU: Intel Celeron J1900 / J6412 / 8th Gen i3 / 10th Gen i5 / 12th Gen i7 • Chipset: Intel Integrated SoC • Memory: 1 × DDR3L or 2 × DDR4 SO-DIMM, up to 64 GB • Storage: 1 × SATA, 1 × mSATA, 1 × M.2 • Graphics: Intel HD / UHD / Iris Xe Graphics • Network: 2 × Intel GbE LAN • Audio: Realtek ALC888S • TPM: TPM 2.0 • OS: Windows 7 / 8 / 10 / 11, Linux, Ubuntu I/O • VIDEO: 1 × HDMI • LAN: 2 × LAN (10/100/1000 Mbps) • USB: 4 × waterproof USB (M12) • COM: 2 × RS-232 / 422 / 485 (waterproof) • Audio: 1 × Audio Out & Mic_in • Ports: M12 Stainless Waterproof Expansion • M.2: Key-E, PCIeUSB (WiFi / BT) • M.2: Key-B, USB2.0 (4G / 5G) • SIM Socket: 1 × SIM Socket


SmartPanel waterproof industrial panel PC - capacitive touchscreen - SUS304 / SUS316 stainless steel shell
