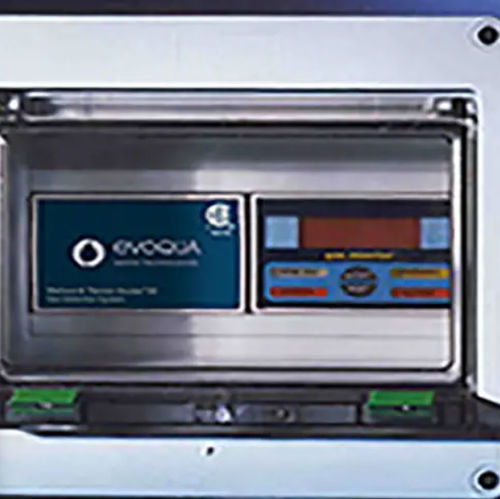

Gas detector Acutec™ 35

chlorineammoniasulfur dioxide

Summary
Online gas monitor providing a flexible and reliable self-testing detection system.

Overview
The Acutec™ 35 system utilizes the latest on-line gas monitoring technology to provide a flexible and reliable, self-testing detection system in a compact modular design. With sensors to detect the presence of chlorine, ammonia, or sulfur dioxide gases in ambient air, the Acutec 35 system is ideal for detecting leaks from storage containers, process piping, or gas feed equipment in water, wastewater, or industrial plant environments.

Key points

• All enclosures are provided with knockouts on all four sides to facilitate wiring using 1/2" FNPT conduit hubs.
• An optional Auto-test unit incorporates an integral gas generator to automatically test the sensor each day and sounds an alarm in case of sensor failure.
• The modular system allows for simple installation of single or multipoint gas detection systems.

Features

• Gas detection for Chlorine (Cl2), Ammonia (NH3) or Sulfur Dioxide (SO2).
• Simple and neat installation of module components.
• Easy access to control panel via a hinged cover on the NEMA 4X enclosure.
• Audible horn to provide local warning.
• Choice of Detector or Monitor version.
• Sunlight readable 4-digit LED on the monitor.
• Single or multipoint gas detection capability.
• Automatic integral gas generator (auto-test) available.

Technical specifications

• Analyzer and Controller Function: Gas Detection and Monitoring
• Analyzer and Controller Sensor: Chlorine gas (Cl2), Sulfur Dioxide (SO2), Ammonia gas (NH3)
