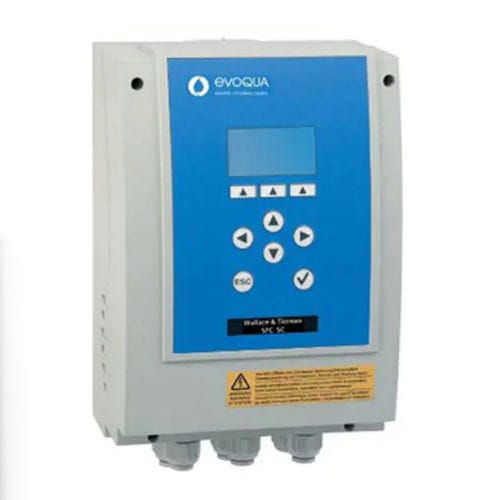

Multiple-output process controller SFC SC

programmable

Overview
The SFC SC is a flow‑proportional chemical dosing controller designed for municipal water treatment and similar industrial process applications. It computes the control signal for dosing equipment and can operate automatic v‑notch positioners (for example V10k™ and V2000™), stroke‑length positioners and variable‑speed drives on dosing pumps. The unit is available as wall‑mounted standalone, equipment‑mounted or panel‑mountable for control enclosures.

Status
The SFC series is discontinued and no longer offered for sale. Limited service and spare parts support will be provided until January 22, 2028.

Functional description

• Calculates the positioner/dosing pump control signal from the process control variable and an adjustable dosing factor.
• Sets positioner position accurately using feedback for closed‑loop control.
• Performs automatic correction to compensate for gas feeder nonlinearity.

Features

• Wide dosing range: 10–400 %.
• Electronic override for manual intervention.
• Control outputs: milliamp (mA) and relay signals.
• Configurable user access control for security.
• Graphical display of parameters and process variables for monitoring and diagnostics.

Benefits

• Intuitive menu navigation simplifies operation.
• Diagnostics menu and automatic fault display reduce commissioning and maintenance time.
• Multiple correction values enable linearization of dosing feedback for improved accuracy.

Mounting options

• Wall‑mounted standalone unit.
• Equipment‑mounted configuration.
• Panel‑mountable unit for installation in control enclosures.

Documentation & resources
Product sheet and user manual are available for this model (see product page for documentation).

Technical specifications

• Function: Analyzer and controller (electronic module).
• Dosing range: 10–400 %.
• Control outputs: milliamp (mA) and relay.
• Supports automatic correction/linearization of dosing feedback using multiple correction values.
• User interface: Graphical parameter and process variable display; intuitive menu navigation.
• Security: Configurable user access control.
• Mounting: Wall‑mount, equipment‑mount, or panel‑mount for control enclosures.
• Product status: Discontinued; limited service and spare parts support through January 22, 2028.
