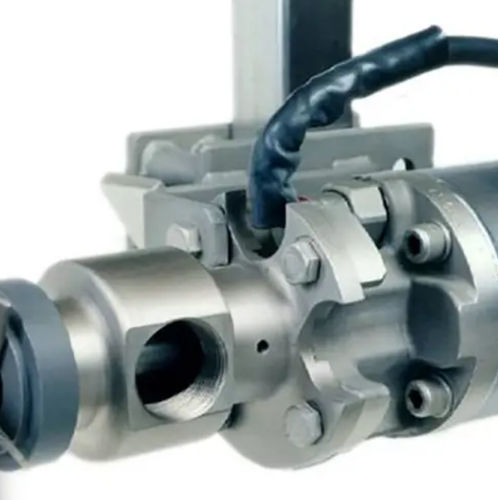

Chlorine dosing dispenser Champ® FX

for chemicalsfor liquid disinfectantsliquids

Overview
The Water Champ® Chemical Induction System is designed for application and instantaneous mixing and diffusion of chemicals used in water and wastewater treatment. The system supports liquid feed or vacuum-based gas feed for agents such as chlorine, hypochlorite, chloramines and dechlorination chemicals, and is constructed from materials compatible with these disinfection applications.

Key performance highlights

• Up to 2x improved mixing and diffusion compared with other systems
• Up to 40% lower energy consumption versus conventional methods

Description
The Water Champ® FX delivers rapid dispersion of disinfection chemicals in open-channel applications. Its wetted components are selected for chemical compatibility to enable both liquid and vacuum-based gas feeds. The design is suitable for drinking water, municipal wastewater and industrial processes where effective disinfection mixing is required.

Features

• All chemically wetted components made from corrosion-resistant Grade 2 titanium or better
• Hermetically sealed motor housed in 316 stainless steel
• Airfoil propeller design for efficient energy transfer to the fluid
• Lightweight assembly with non-corrosive moving parts for simplified installation
• Retrofit-ready: flexible guiderail and pivot bracket for installation in existing basins and channels
• Configurable for gas or liquid service; vacuum or non-vacuum feed
• Optional Alternate Liquid Feed (ALF) assembly for dual-feed applications such as chloramination

Benefits

• Potential chemical usage reduction up to 20% versus conventional dosing
• Eliminates hydraulic dead zones to achieve uniform chemical dispersion
• Maintains disinfection performance across variable flow rates, effective to very low residuals (example: down to 2.2 MPN or non-detect)

Applications

• Drinking water chemical dosing and mixing (WTW)
• Municipal wastewater chemical dosing and mixing (WWTW)
• Stormwater and combined sewer overflow (CSO) chemical dosing and mixing

Technical specifications

• Model / Series: Water Champ® FX
• Chemical compatibility: chlorine, hypochlorite, chloramines, dechlorination agents (liquid feed or vacuum-based gas feed)
• Wetted materials: Grade 2 titanium or better
• Motor: hermetically sealed, 316 stainless steel construction
• Propeller: airfoil design for efficient energy transfer
• Energy efficiency: up to 40% less energy versus conventional methods
• Mixing performance: up to 2x improved mixing and diffusion versus other systems; eliminates dead zones
• Chemical reduction potential: up to 20% compared with conventional methods
• Installation: lightweight design, non-corrosive moving parts, flexible guiderail and pivot bracket for retrofit or new installations
• Configuration: gas or liquid, vacuum or non-vacuum feed; optional Alternate Liquid Feed (ALF) for dual chemical feed
• Primary applications: drinking water, municipal wastewater, stormwater/CSO
