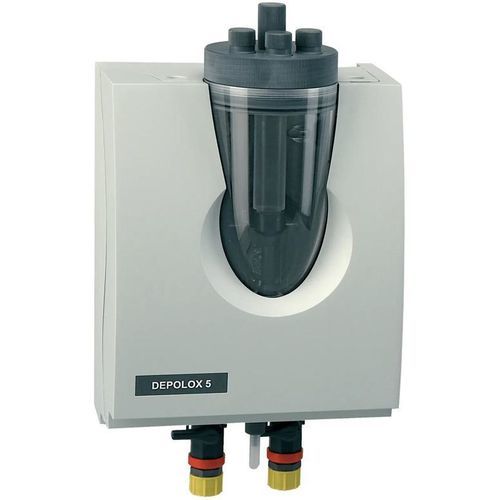

PH water quality meter DEPOLOX® 5

chlorinetemperatureelectrical conductivity

Overview
DEPOLOX® 5 is a water quality measurement module designed for use with SFC (single-point) or MFC (multi-point) electronic packages. It comprises a plug-in sensor card and a flow cell with a bare-electrode configuration, using amperometric residual measurement technology for reliable residual disinfectant monitoring.

Key features

• Accurate measurement and high reproducibility
• Fast response time to adapt to fluctuating disinfection demands
• Plug-in sensor card and flow cell for easy replacement
• Hydrodynamic cell cleaning to minimize maintenance

Description
DEPOLOX® 5 can be paired with the SFC electronic package for single-point analysis and control or with the MFC package for multiple measurements and control. The module supports a range of analytes and is suitable for applications from basic monitoring to advanced control loops in potable water, process water and pool water treatment. For pH-corrected free chlorine measurement with a single SFC unit, a SiDiSens module is available.

Benefits

• Economical, reagentless operation
• Proven performance in thousands of installations worldwide
• Intuitive programming for user-friendly operation

Applications

• Aquaculture
• Disinfection
• Boiler feedwater
• Cooling tower water treatment
• Equipment washing and sanitization
• Industrial pretreatment
• High purity water treatment
• Chloramination
• Distribution system re-chlorination
• Drinking water disinfection
• Reverse osmosis membrane pretreatment
• Wastewater and reuse chlorination/dechlorination

Specifications

• Analyzer and controller function: Measurement cells / assembly
• Sensors supported: Total chlorine; Free chlorine; Chlorine dioxide (ClO2); Ozone (O3); Potassium permanganate (KMnO4); pH; Fluoride; Redox (ORP); Conductivity; Temperature
• Measurement technology: Amperometric residual measurement
• Sensor configuration: Plug-in sensor card and flow cell with bare-electrode measurement
• Compatibility: SFC (single point) and MFC (multiple measurements) electronic packages
• Option: SiDiSens module for pH-corrected free chlorine with single SFC
• Maintenance: Hydrodynamic cell cleaning for reduced maintenance
