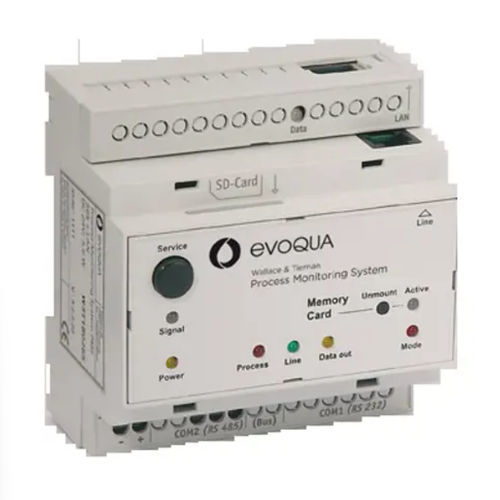

PH monitoring system

conductivityfor water qualitymulti-parameter

Status
The Process Monitoring System (PMS) has been discontinued and is no longer available for sale.

Description
The PMS provides facility staff with a consolidated overview of all installed Wallace & Tiernan® disinfection systems, showing complete water chemistry and disinfection status on a single web-accessible screen. Connected systems can be visualized from PCs, laptops, tablets or smartphones. The PMS supports both read and write commands, enabling authorized personnel to apply configuration changes remotely via password-protected access. The device automatically creates monthly log files for each connected unit; these files are updated daily and can be downloaded via the web interface or retrieved from the removable memory card.

Features

• Independent system architecture for standalone operation
• Data visualization using an integrated web server
• Remote device configuration and maintenance (read/write commands)
• Password-protected access for authorized users only
• Remote-accessible archive files and daily-updated logs
• Secured e-mail function for scheduled reports or event-driven alerts
• Data archiving to a removable memory card
• Web trend charts for clear visualization of historical data

Benefits

• User-friendly web interface with four user levels and role separation
• No special operating software or software license required — access via standard web browser
• Smartphone-capable via Wi‑Fi or Internet (external USB port for Wi‑Fi USB stick)

Documentation (available)

• Product Sheet: PMS: English (approx. 233.25 kB)
• Manual: PMS: English (approx. 4.85 MB)

Technical specifications

• Analyzer and controller function: connectivity / remote monitoring
• Integrated web server for real-time data visualization
• Remote read/write command support for connected devices
• Password-protected remote access (authorized users only)
• Automatic creation of monthly device files, updated daily
• Files downloadable via web interface or copyable from removable memory card
• Secured e-mail for scheduled or event-driven reports
• Data archiving to removable memory card
