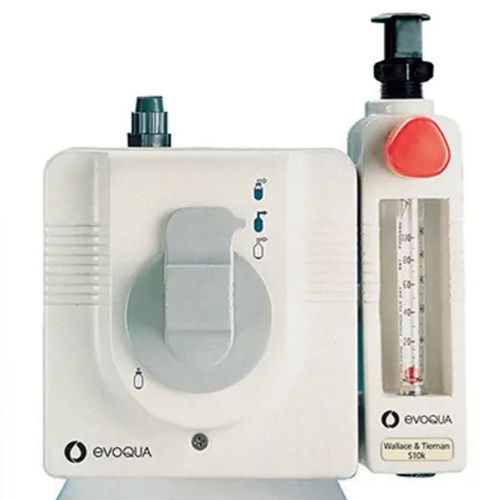

Dosing station S10K™

Overview
The S10K™ chlorinator is a vacuum-operated, sonically regulated gas feeder engineered for low-capacity dosing in water treatment applications. Direct cylinder mounting positions the vacuum control valve at the gas source to immediately reduce cylinder pressure to a vacuum. The unit accepts multiple water-treatment gases and supports flexible mounting for cylinders, manifolds or ton containers, enabling adaptable installation layouts.

Key features

• Vacuum-operated, sonically regulated control for accurate low-capacity dosing
• Direct cylinder mounting locates the vacuum control at the gas source
• Integral change-over unit for multiple cylinders (optional)
• Volt-free contact for container-empty signal (optional)
• Positive shutoff allowing container changes without ingress of air, dirt or moisture
• Clear status icons for instant container condition indication
• Configured for chlorine, carbon dioxide, sulfur dioxide and ammonia (consult for other gases)

Benefits

• Multiple mounting configurations adapt to varied plant layouts (cylinders, manifolds, ton containers)
• Captive yoke assembly simplifies alignment on containers for fast installation
• Non-isolating switchover ensures complete gas consumption from supply containers
• Reduced internal parts improve reliability and simplify maintenance

Additional information
The S10K™ is available in basic arrangements to support different capacity requirements and is suitable for a broad range of water treatment gas feed applications.

Technical specifications

• Maximum ammonia capacity: 4.75 kg/hr
• Maximum carbon dioxide capacity: 8 kg/hr
• Maximum chlorine capacity: 10 kg/hr
• Maximum sulfur dioxide capacity: 9 kg/hr
• Two standard chlorine arrangements offered: ~4 kg/hr and ~10 kg/hr (approx. 200 and 500 lb/day)
