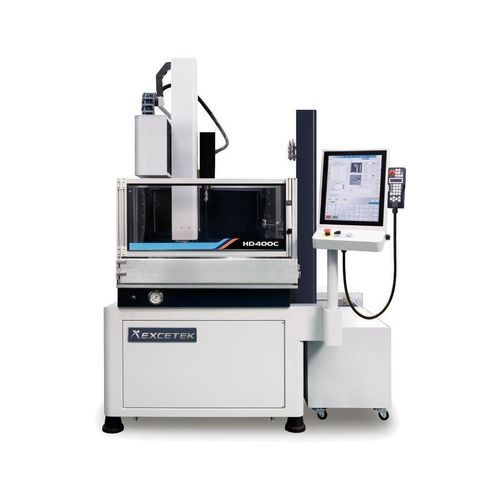

CNC deep hole drilling machine HD400C

vertical3-axisEDM

Short description
X/Y axes: 400 x 300 mm
Z axis: 400 mm
W axis: 400 mm

Overview
The HD400C is a hole‑drilling EDM machine designed for high‑speed, high‑precision small‑hole machining. It integrates an EXCETEK Motion Controller and optimized servo control to deliver repeatable accuracy and fast cycle times. LAN and USB interfaces are provided for data transfer. The machine supports IoT and automation integration and includes a comprehensive EDM cutting technology database for process optimization.

The Generator & CNC Control - Key features

• Optimised servo control for high speed and precision.
• Input interfaces: LAN, USB for program and parameter exchange.
• Comprehensive EDM cutting technology database to simplify process setup.
• IoT and automation ready for Smart Factory connectivity.

Touch Screen and Friendly Operation Interface

• Graphical touch‑screen user interface for intuitive operation.
• Graphic programming and easy parameter setting.
• AEC & AGC setting support for automated electrode handling.
• Integrated machining monitor and extensive technology recipes.
• Metrix editing with multiple pattern types (square, circle, linear, etc.).

Mechanical Structure / Automation Options

• Auto electrode changer options: linear and rotary systems (e.g., 8 AEC linear, 16 AEC rotary).
• Auto guide changer (AGC) available to reduce manual intervention.
• A/B rotary table option for increased throughput.
• Various mechanical configurations to support automated electrode handling and tool changes.

Accessories
Standard Accessories

• Electrode chuck Ø0.3 mm ~ Ø3.0 mm × 1
• Electrode guide Ø1.0 mm × 1
• Electrode brass pipe Ø1.0 mm × 20 pcs
• Tool box × 1
• Paper filter PW‑40‑2 300 × 29 × 500 mm 10 μm × 1
• Paper filter PP 10 inch 5 μm × 1
• Parallel pad × 2
• Water seal × 20 pcs
• Air chuck

Options

• A/B rotary table
• Auto electrode changer system (AEC)
• Auto electrode chuck Ø3.1 ~ Ø6.0
• XY linear scale with 1 μm resolution
• Auto guide changer (AGC)
• Water cooler
• Ion exchange system
• CE certification option
• IoT and automation packages for Smart Factory integration
• DXF and Wire‑Cut NC file conversion
• Stainless semi‑submerged work tank
• Finish stop device
• Maximum machining current option up to 75 A

Technical specifications

• Work table size (W × D): 600 × 350 mm
• X/Y axes travel: 400 × 300 mm
• Z axis travel: 400 mm
• W axis travel: 400 mm
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Auto electrode changer (option): 8 / 16 pcs
• Max. electrode length: 400 mm
• Max. workpiece height: 400 mm
• Max. workpiece weight: 500 kg
• Machine weight: 1630 kg
• Input power: 4.0 KVA
• Machine dimensions (L × W × H): 1900 × 1965 × 2600 mm
