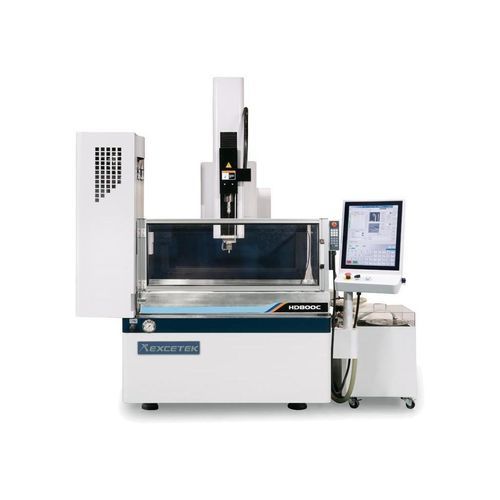

CNC deep hole drilling machine HD800C

vertical3-axisEDM

Short description
X/Y axes : 800 x 600 mm
Z axis : 400 mm (Option 600 mm)
W axis : 400 mm (Option 600 mm)

Specification (summary)
Work table size (WxD): 900 x 600 mm
X/Y axes travel: 800 x 600 mm
Z axis travel: 400 mm (Option 600 mm)
W axis travel: 400 mm (Option 600 mm)
Electrode size: Ø 0.3 ~ Ø 3.0 mm
Auto electrode changer (Option): 8/16 pcs
Max. electrode length: 400 mm (Option 600 mm)
Max. workpiece height: 400 mm (Option 600 mm)
Max. workpiece weight: 1500 kg
Machine weight: 3200 kg
Input power: 4.0 KVA
Machine dimension: 2505 x 2500 x 2600 mm
2505 x 2500 x 3000 mm (without water tank) (Option 600)

Features

• The HD Series Hole Driller with EXCETEK Motion Controller has an optimized servo control to achieve high speed and precision.
• Input Interface: LAN, USB.
• Easy setting and comprehensive EDM cutting technology database.
• IOT and Automation Solution for Smart Factory.
• Touch screen and friendly operation interface; easy operation with graphic screen.
• AEC & AGC setting; machining monitor and abundant cutting-technology database.
• Metrix Editing / Dialogue Metrix Edit System with multiple metrix modes: Square, Square-1, Circle, Circle-1, Linear, etc.

Mechanical / Structural features

• Optional linear or rotary automatic electrode changers (examples: 8 AEC linear, 16 AEC rotary).
• Optional A/B rotary tablet and auto guide changer.
• Options for water cooler, ion exchange system, stainless semi-submerged work tank, finish stop device.

Accessories
Standard Accessories

• Electrode Chuck Ø0.3mm~Ø3.0mm x 1
• Electrode Guide Ø1.0mm x 1
• Electrode Pipe Brass Ø1.0mm x 20 pcs
• Tools Box x 1
• Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1 pcs
• Paper Filter PP 10 inch 5μm x 1 pcs
• Parallel Pad x 2
• Water Seal x 20 pcs
• Air Chuck

Options

• A/B Rotary Tablet
• Auto Electrode Changer System
• Auto Electrode Chuck Ø3.1~Ø6.0
• XY Linear Scale With 1μm Resolution
• Auto Guide Changer System
• Water Cooler
• Ion Exchange System
• CE
• IOT And Automation Solution For Smart Factory
• DXF File, Wire Cut NC File Conversion
• Stainless Semi-submerged Work Tank
• Finish Stop Device
• Max. Machining Current 75A

Technical specifications

• Model: HD800C
• Work table size (WxD): 900 x 600 mm
• X/Y axes travel: 800 x 600 mm
• Z axis travel: 400 mm (Option 600 mm)
• W axis travel: 400 mm (Option 600 mm)
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Auto electrode changer (Option): 8/16 pcs
• Max. electrode length: 400 mm (Option 600 mm)
• Max. workpiece height: 400 mm (Option 600 mm)
• Max. workpiece weight: 1500 kg
• Machine weight: 3200 kg
• Input power: 4.0 KVA
• Machine dimension: 2505 x 2500 x 2600 mm (2505 x 2500 x 3000 mm without water tank; Option 600)
