CNC deep hole drilling machine HD400C-CE

vertical3-axisEDM

Overview

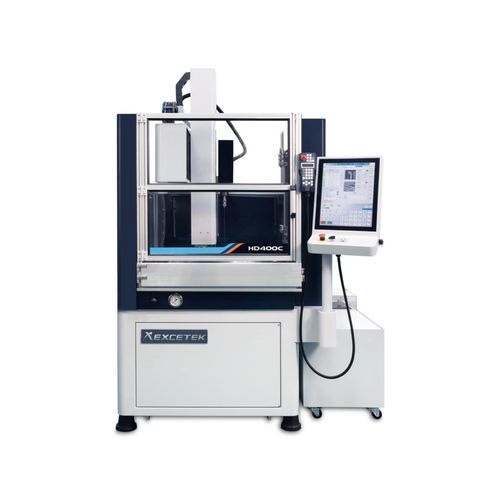

The HD400C-CE is a CNC small-hole EDM machine engineered for high-speed, high-precision micro drilling. Fitted with the EXCETEK Motion Controller and optimized servo control, it provides reliable positioning and machining performance. X/Y travel: 400 x 300 mm; Z travel: 400 mm; W travel: 400 mm.

Features

• HD Series hole driller with EXCETEK Motion Controller for optimized servo control delivering high speed and precision.
• Input interface: LAN, USB.
• Intuitive setup and a comprehensive EDM cutting-technology database.
• IoT and automation solution for smart factory integration.
• Touchscreen graphical user interface with extensive cutting-technology resources.
• Machining monitor and Metrix Editing / Dialogue Metrix Edit System supporting square, circular, linear and other metrix types.

Mechanical / Structure & Automation

• Auto Electrode Changer options: linear 8 AEC or rotary 16 AEC (optional).
• Optional Auto Guide Changer, A/B rotary tablet, Auto Electrode Chuck (Ø3.1–Ø6.0).
• IoT and automation features for integration into smart factory environments.

Standard Accessories

• Electrode chuck Ø0.3 mm ~ Ø3.0 mm x 1.
• Electrode guide Ø1.0 mm x 1.
• Electrode pipe brass Ø1.0 mm x 20 pcs.
• Tools box x 1.
• Paper filter PW-40-2 300 x 29 x 500 mm 10 μm x 1 pc.
• Paper filter PP 10 inch 5 μm x 1 pc.
• Parallel pad x 2.
• Water seal x 20 pcs.
• Air chuck.

Options

• A/B rotary tablet.
• Auto Electrode Changer System.
• Auto Electrode Chuck Ø3.1–Ø6.0.
• XY linear scale with 1 μm resolution.
• Auto Guide Changer System.
• Water cooler.
• Ion exchange system.
• CE certification.
• IoT and automation solution for smart factory.
• DXF file and wire-cut NC file conversion.
• Stainless semi-submerged work tank.
• Finish stop device.
• Max. machining current 75 A.

Technical specifications

• Work table size (W x D): 650 x 350 mm.
• X/Y axes travel: 400 x 300 mm.
• Z axis travel: 400 mm.
• W axis travel: 400 mm.
• Electrode size: Ø 0.3 ~ Ø 3.0 mm.
• Auto electrode changer (option): 8 / 16 pcs.
• Max. electrode length: 400 mm.
• Max. workpiece height: 400 mm.
• Max. workpiece weight: 500 kg.
• Machine weight: 1630 kg.
• Input power: 4.0 KVA.
• Machine dimensions (W x D x H): 1900 x 1965 x 2600 mm.
• Max. machining current (option): 75 A.
