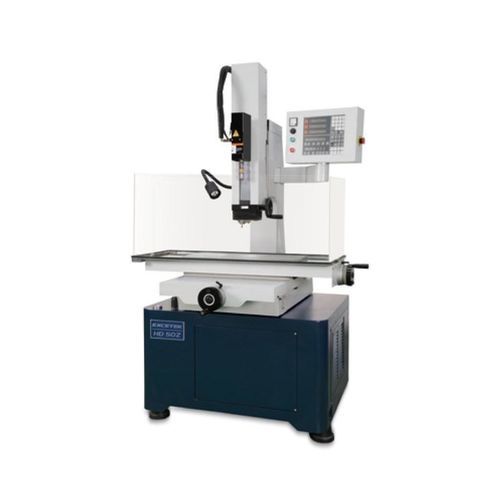

CNC deep hole drilling machine HD50Z

vertical3-axisEDM

Short description
Compact general-purpose small-hole EDM drilling machine. X/Y axes: 450 x 350 mm; Z axis: 345 mm; W axis travel + manual guide travel: 200 + 150 mm. Electrode size Ø0.3 ~ Ø3.0 mm. Suitable for workpieces up to 990 x 460 x 350 mm and 450 kg.

Specification
Work table size (WxD): 600 x 300 mm
X/Y axes travel: 450 x 350 mm
Z axis travel: 345 mm
W axis travel + manual guide travel: 200 + 150 mm
Electrode size: Ø 0.3 ~ Ø 3.0 mm
Max. electrode length: 400 mm
Max. workpiece size: 990 x 460 x 350 mm
Max. workpiece weight: 450 kg
Machine weight: 1730 kg
Max. machining current: 48 A
Input power: 4.0 KVA
Machine dimension: 2036 x 2075 x 2290 mm

Features

• Pulse generator with adjustable machining parameters
• CNC controller with W-axis and manual guide functions

Accessories
Standard Accessories

• Electrode Chuck Ø0.3mm~Ø3.0mm x 1
• Electrode Guide Ø1.0mm x 1
• Electrode Brass Tube Ø1.0mm x 20 pcs
• Work Lamp x 1
• 80L Stainless Water Filter Tank
• Tools Box x 1
• Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1 pcs
• Paper Filter PP 10 inch 5μm x 1 pcs
• Parallel Pad x 2
• Water Seal

Options

• Electrode Chuck Ø3.1mm~Ø6.0mm
• CE
• Finish Stop Device
• Air Chuck

Technical specifications

• Work table size (WxD): 600 x 300 mm
• X/Y axes travel: 450 x 350 mm
• Z axis travel: 345 mm
• W axis travel + manual guide travel: 200 + 150 mm
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Max. electrode length: 400 mm
• Max. workpiece size: 990 x 460 x 350 mm
• Max. workpiece weight: 450 kg
• Machine weight: 1730 kg
• Max. machining current: 48 A
• Input power: 4.0 KVA
• Machine dimension: 2036 x 2075 x 2290 mm
