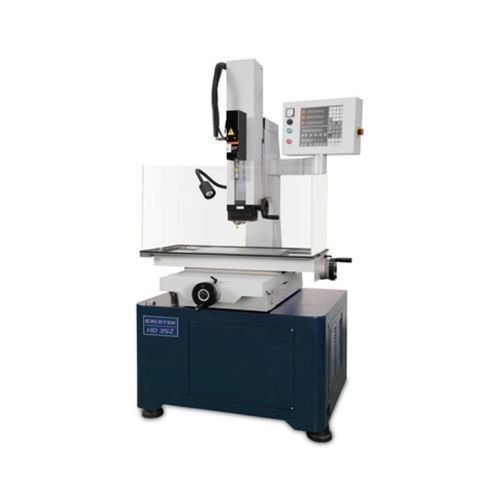

CNC deep hole drilling machine HD35Z

vertical3-axisEDM

Short description
Die-sinking electrical discharge machine (EDM) HD35Z for machining workpieces up to 810 x 430 x 350 mm and up to 350 kg. Working travels: X/Y 350 x 250 mm, Z 350 mm; W axis travel 200 mm + manual guide 150 mm. Electrode diameter Ø0.3 ~ Ø3.0 mm, max electrode length 400 mm. Max machining current 48 A, input power 4.0 KVA.

Technical specifications

• Work table size (WxD): 600 x 300 mm
• X/Y axes travel: 350 x 250 mm
• Z axis travel: 350 mm
• W axis travel + Manual Guide travel: 200 + 150 mm
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Max. electrode length: 400 mm
• Max. workpiece size: 810 x 430 x 350 mm
• Max. workpiece weight: 350 kg
• Machine weight: 1130 kg
• Max. machining current: 48 A
• Input power: 4.0 KVA
• Machine dimensions (LxWxH): 1520 x 1287 x 2300 mm

Features

• CNC controller for programmable machining cycles and axis control
• W axis with manual guide for fine adjustment

Standard accessories

• Electrode Chuck Ø0.3mm~Ø3.0mm x 1
• Electrode Guide Ø1.0mm x 1
• Electrode Brass Tube Ø1.0mm x 20 pcs
• Work Lamp x 1
• 80L Stainless Water Filter Tank
• Tools Box x 1
• Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1 pcs
• Paper Filter PP 10 inch 5μm x 1 pcs
• Parallel Pad x 2
• Water Seal

Options

• Electrode Chuck Ø3.1mm~Ø6.0mm
• CE
• Finish Stop Device
• Air Chuck

Applications

• Mould and die manufacturing
• Tooling and fixtures
• Automotive component machining
• Aerospace and precision parts
• Medical device machining
• General precision components requiring EDM processing
