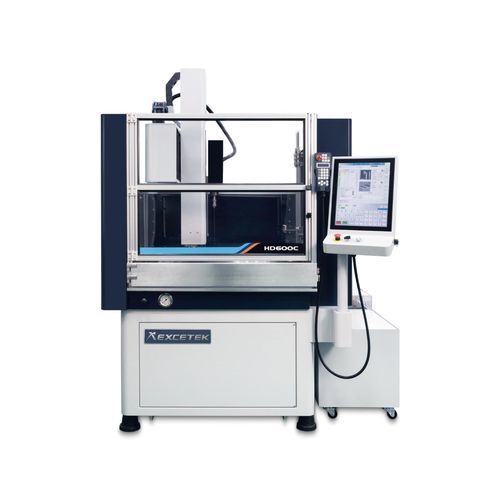

CNC deep hole drilling machine HD600C-CE

vertical3-axisEDM

Short description
The HD Series Hole Driller HD600C-CE with EXCETEK motion controller is designed for high-speed, high-precision hole drilling and EDM machining tasks. Travel ranges support medium-format workpieces and automated production integration.

Features

• Optimized servo control with EXCETEK Motion Controller for speed and precision.
• Input interfaces: LAN, USB.
• User-friendly touchscreen interface with graphic display.
• Comprehensive EDM cutting technology database and machining monitoring.
• Metrix editing system supporting square, circular, linear and other metrix types.
• IoT and automation solutions for Smart Factory integration.

Mechanical structure / Options (high-level)

• Auto electrode changer options: Linear (8 AEC) and Rotary (16 AEC).
• AGC – Automatic Guide Changer (option).
• A/B rotary table (option).
• Auto electrode chuck Ø3.1 ~ Ø6.0 (option).
• XY linear scale with 1 μm resolution (option).
• Water cooler, ion exchange system, CE certification (options).
• Stainless semi-submerged work tank and finish stop device (options).
• Max. machining current 75 A (option).

Accessory overview
Standard Accessories

• Electrode chuck Ø0.3 mm ~ Ø3.0 mm x 1
• Electrode guide Ø1.0 mm x 1
• Electrode pipe brass Ø1.0 mm x 20 pcs
• Tools box x 1
• Paper filter PW-40-2 300 x 29 x 500 mm 10 μm x 1 pcs
• Paper filter PP 10 inch 5 μm x 1 pcs
• Parallel pad x 2
• Water seal x 20 pcs
• Air chuck

Options

• A/B rotary table
• Auto electrode changer system
• Auto electrode chuck Ø3.1~Ø6.0
• XY linear scale with 1 μm resolution
• Auto guide changer system
• Water cooler
• Ion exchange system
• CE
• IoT and automation solution for Smart Factory
• DXF file, wire cut NC file conversion
• Stainless semi-submerged work tank
• Finish stop device
• Max. machining current 75 A

Technical specifications

• Model: HD600C-CE
• Work table size (W x D): 700 x 450 mm
• X/Y axes travel: 600 x 400 mm
• Z axis travel: 400 mm
• W axis travel: 400 mm
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Auto electrode changer (option): 8 / 16 pcs
• Maximum electrode length: 400 mm
• Maximum workpiece height: 400 mm
• Maximum workpiece weight: 800 kg
• Machine weight: 1730 kg
• Input power: 4.0 KVA
• Machine dimension (L x W x H): 2000 x 1965 x 2600 mm
