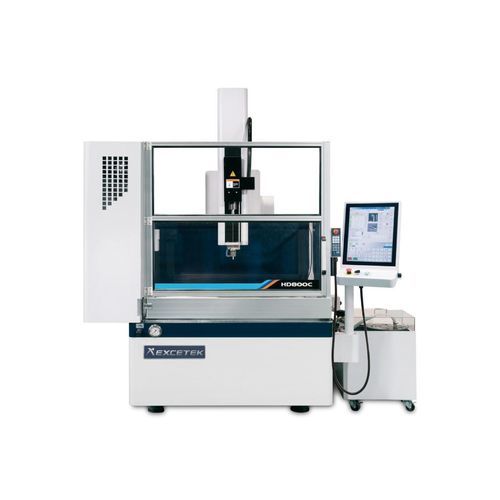

CNC deep hole drilling machine HD800C-CE

vertical3-axisEDM

Short description
The HD800C-CE is a small-hole EDM drilling machine engineered for precision machining of fine-diameter holes. It is equipped with the EXCETEK Motion Controller and optimized servo control to combine high speed with positional accuracy. IoT and automation-ready functions support integration into smart factory environments.

Key dimensions & travels
Work table size (WxD): 900 x 600 mm
X/Y axes travel: 800 x 600 mm
Z axis travel: 400 mm (option 600 mm)
W axis travel: 400 mm (option 600 mm)
Electrode size: Ø 0.3 ~ Ø 3.0 mm
Auto electrode changer (option): 8 / 16 pcs
Max. electrode length: 400 mm (option 600 mm)
Max. workpiece height: 400 mm (option 600 mm)
Max. workpiece weight: 1500 kg
Machine weight: 3200 kg
Input power: 4.0 KVA
Machine dimensions: 2505 x 2500 x 2600 mm
2505 x 2500 x 3000 mm (without water tank) (option 600)

Features

• EXCETEK Motion Controller with optimized servo control for high-speed, high-precision drilling.
• Data interfaces: LAN and USB for program transfer and monitoring.
• Comprehensive EDM cutting-technology database for process setup.
• IoT and automation solution for factory connectivity and monitoring.

Control, UI and Software

• Touchscreen with graphical user interface for operator-friendly setup and monitoring.
• AEC & AGC support for automated electrode and guide management.
• Extensive cutting-technology database and machining monitor functions.
• Metrix editing: Square, Square-1, Circle, Circle-1 and Linear metrix types supported.

Mechanical structure & options

• Electrode handling: 8 AEC linear or 16 AEC rotary electrode changer (options).
• Automatic guide changer (AGC) and Auto Electrode Changer System available as options.
• Optional A/B rotary table, Auto Electrode Chuck Ø3.1–Ø6.0, XY linear scale with 1 μm resolution.
• Optional water cooler, ion exchange system, CE compliance package, stainless semi-submerged work tank, finish stop device; max. machining current 75 A.

Standard accessories

• Electrode Chuck Ø0.3 mm–Ø3.0 mm x 1
• Electrode Guide Ø1.0 mm x 1
• Electrode Pipe Brass Ø1.0 mm x 20 pcs
• Tools Box x 1
• Paper Filter PW-40-2 300 x 29 x 500 mm 10 μm x 1 pcs
• Paper Filter PP 10 inch 5 μm x 1 pcs
• Parallel Pad x 2
• Water Seal x 20 pcs
• Air Chuck

Options

• A/B rotary table
• Auto Electrode Changer System
• Auto Electrode Chuck Ø3.1–Ø6.0
• XY linear scale with 1 μm resolution
• Auto Guide Changer System
• Water cooler
• Ion exchange system
• CE compliance
• IoT and automation solution for smart factory
• DXF file and wire-cut NC file conversion
• Stainless semi-submerged work tank
• Finish stop device
• Max. machining current 75 A

Technical specifications

• Model: HD800C-CE
• Work table (WxD): 900 x 600 mm
• X/Y travel: 800 x 600 mm
• Z travel: 400 mm (option 600 mm)
• W travel: 400 mm (option 600 mm)
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Auto electrode changer: 8/16 pcs (option)
• Max. electrode length: 400 mm (option 600 mm)
• Max. workpiece height: 400 mm (option 600 mm)
• Max. workpiece weight: 1500 kg
• Machine weight: 3200 kg
• Input power: 4.0 KVA
• Machine dimensions: 2505 x 2500 x 2600 mm (2505 x 2500 x 3000 mm without water tank - option 600)
