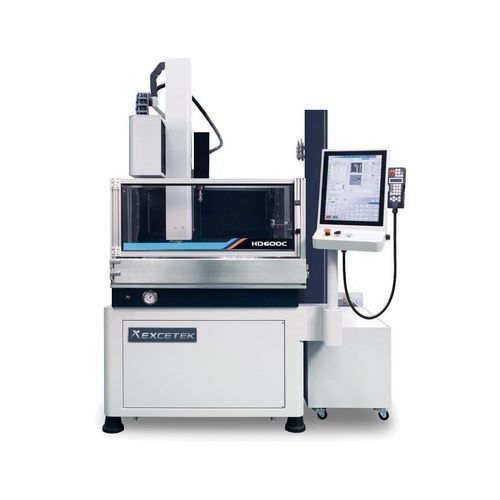

CNC deep hole drilling machine HD600C

vertical3-axisEDM

Product overview
The HD600C is a CNC small-hole EDM drilling machine developed for precision, high-speed small-hole EDM operations. Equipped with the EXCETEK Motion Controller, the HD600C integrates optimized servo control, a touch-screen operator interface and IoT-ready automation to support smart factory workflows.

Key specifications

• Work table (WxD): 700 × 450 mm
• X/Y axes travel: 600 × 400 mm
• Z axis travel: 400 mm
• W axis travel: 400 mm
• Electrode size: Ø 0.3 – Ø 3.0 mm
• Auto electrode changer (option): 8 / 16 pcs
• Max. electrode length: 400 mm
• Max. workpiece height: 400 mm
• Max. workpiece weight: 800 kg
• Machine weight: 1730 kg
• Input power: 4.0 KVA
• Machine dimensions (L×W×H): 2000 × 1965 × 2600 mm

Features

• Generator & CNC control: HD Series hole driller with EXCETEK Motion Controller for optimized servo control and high-speed, precise EDM drilling.
• Operator interfaces: LAN and USB connectivity; touch-screen HMI with machining monitor.
• Comprehensive EDM cutting-technology database and easy setting procedures for repeatable results.
• Matrix Edit System with multiple pattern options (square, circle, linear, etc.).
• IoT and automation solution for integration into smart factory environments.

Standard accessories

• Electrode chuck Ø0.3 mm – Ø3.0 mm × 1
• Electrode guide Ø1.0 mm × 1
• Electrode pipe brass Ø1.0 mm × 20 pcs
• Tools box × 1
• Paper filter PW-40-2 300 × 29 × 500 mm 10 μm × 1
• Paper filter PP 10 inch 5 μm × 1
• Parallel pad × 2
• Water seal × 20 pcs
• Air chuck

Options

• A/B rotary tablet
• Auto electrode changer system (8/16 pcs)
• Auto electrode chuck Ø3.1 – Ø6.0
• XY linear scale with 1 μm resolution
• Auto guide changer system
• Water cooler
• Ion exchange system
• CE certification
• IoT and automation packages for smart factory integration
• DXF file and wire-cut NC file conversion
• Stainless semi-submerged work tank
• Finish stop device
• Max. machining current: 75 A

Technical specifications

• Model: HD600C
• Work table (WxD): 700 × 450 mm
• X/Y axes travel: 600 × 400 mm
• Z axis travel: 400 mm
• W axis travel: 400 mm
• Electrode size: Ø0.3 – Ø3.0 mm
• Auto electrode changer (option): 8 / 16 pcs
• Max. electrode length: 400 mm
• Max. workpiece height: 400 mm
• Max. workpiece weight: 800 kg
• Machine weight: 1730 kg
• Input power: 4.0 KVA
• Machine dimensions (L×W×H): 2000 × 1965 × 2600 mm
