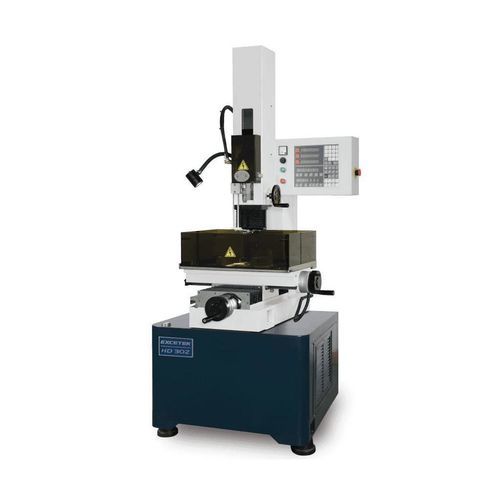

CNC deep hole drilling machine HD30Z

vertical3-axisEDM

Short description
Compact small-hole EDM drilling machine for precision hole-making in conductive materials. Model HD30Z provides dedicated electrode handling and guidance for accurate micro-EDM operations.

Overview
The HD30Z is a general-purpose small-hole drilling EDM designed for precision micro-drilling applications. It integrates controlled electrode feed, manual guide travel and a generous Z-axis stroke to machine small-diameter holes with repeatable accuracy. Suitable for mold, tool and component manufacturing requiring fine EDM holes.

Key features

• CNC controller with dedicated EDM functions (controller image available on product page)
• Electrode handling system with chuck and guide for Ø0.3–Ø3.0 mm electrodes
• W axis manual guide travel 150 mm for flexible electrode setup
• Maximum machining current 48 A and input power 4.0 KVA
• Compact footprint: 1450 x 1250 x 2100 mm

Standard accessories

• Electrode Chuck Ø0.3mm~Ø3.0mm x 1
• Electrode Guide Ø1.0mm x 1
• Electrode Brass Tube Ø1.0mm x 20 pcs
• Work Lamp x 1
• 80L Stainless Water Filter Tank
• Tools Box x 1
• Paper Filter PW-40-2 300 x 29 x 500mm 10μm x 1 pcs
• Paper Filter PP 10 inch 5μm x 1 pcs
• Parallel Pad x 2
• Water Seal

Options

• Electrode Chuck Ø3.1mm~Ø6.0mm
• CE
• Finish Stop Device
• Air Chuck

Technical specifications

• Model: HD30Z
• Work table size (W x D): 450 x 210 mm
• X/Y axes travel: 300 x 200 mm
• Z axis travel: 345 mm
• W axis Travel + Manual Guide Travel: 0 + 150 mm
• Electrode size: Ø 0.3 ~ Ø 3.0 mm
• Maximum electrode length: 400 mm
• Maximum workpiece size: 660 x 410 x 150 mm
• Maximum workpiece weight: 150 kg
• Machine weight: 930 kg
• Maximum machining current: 48 A
• Input power: 4.0 KVA
• Machine dimension (W x D x H): 1450 x 1250 x 2100 mm
