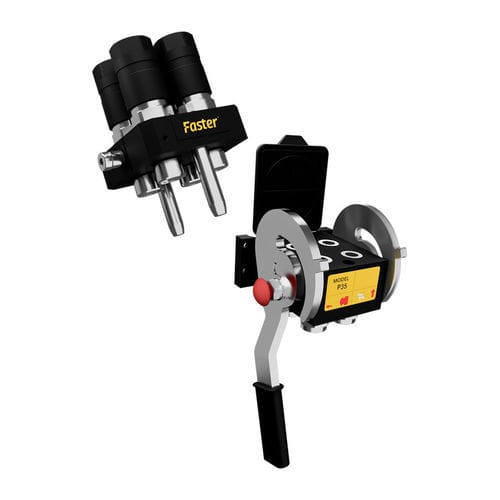

Multifaster P508HD

Overview
Multifaster P508HD hydraulic quick-release manifold for 4-line configurations, dash size 08 (12.5 mm / 1/2"). Rated working pressure up to 35 MPa (350 bar). Designed for residual connection under pressure.

Applications

• Construction equipment
• Industrial hydraulics
• Oil & Gas
• Vehicles & road machines
• Forestry
• Mining

Items - Female

• P508HD-D-0000-4-AFC
  Size: 12.5 mm (1/2")
  4 x Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  Seals: NBR & PUR
  Weight: 4400 g
  * Right-hand lever and safety lock.
• P508HD-S-0000-4-AFC
  Size: 12.5 mm (1/2")
  4 x Couplings 1/2": BSPP 1/2" FEMALE - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  Seals: NBR & PUR
  Weight: 4400 g
  * Left-hand lever and safety lock.

Items - Male

• P508HD-0000-4-AMC
  Size: 12.5 mm (1/2")
  1 x Coupling 1/2": BSPP 1/2" FEMALE - ISO 1179-1
  Flow rate: 70 l/min at 0.2 MPa
  Seals: NBR & PUR
  Weight: 2950 g

Downloads available (documents related to this product)

• Data sheet (ProductSerieSheet-P508HD-en)
• User Instruction (Multifaster instructions)

Characteristics / technical specifications

• Dash size: 08 (Size 12.5 mm / 1/2")
• Working pressure: 35 MPa
• Flow rate: 70 l/min (at 0.2 MPa)
• Spillage: 0.01 ml
• Burst pressure (Male): 105 MPa
• Burst pressure (Female): 105 MPa
• Burst pressure (Male + Female): 105 MPa
• Material: Aluminium & Steel
• Seals: NBR & PUR
• Working temperatures: -25 °C to 100 °C
• Surface treatment: MATE 500 (CrIII) & Paint
• Series Interchange: MultiFaster
• Valve Type: Flat
• Connection: Lever
• Disconnection: Lever
• Connection Under Pressure: Allowed (Residual)
• Typical configurations: 4 x 1/2" couplings (female) or 1 x 1/2" coupling (male) depending on item
