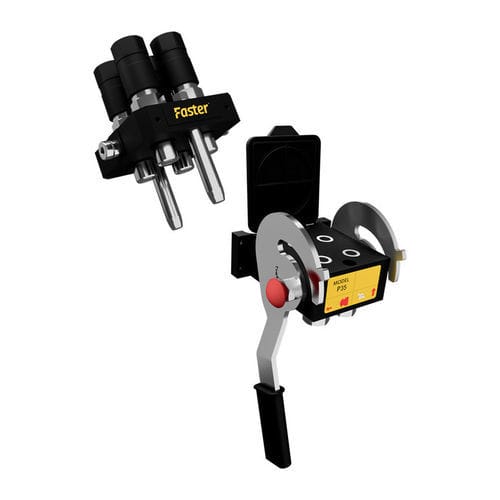

Hydraulic multi-coupling P506HD seriesfor industrial applicationsfor mining applicationsfemale
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Other characteristics
- for industrial applications, for mining applications, female
Description
Product series
P506HD Multifaster
Description
New Multifaster, flat valve type, rated 350 bar (35 MPa), 4 lines, size 06 (10 mm / 3/8 in). Connection and disconnection by lever. Connection under pressure allowed (residual). Right-hand or left-hand lever variants with safety lock available.
Applications
Items - Female
Items - Male
Technical table - Burst pressure / Performance (representative)
Dash Size | Size (mm) | Working Pressure | Flow Rate (l/min) | Spillage (ml) | Male Burst Pressure (MPa) | Female Burst Pressure (MPa) | Male+Female (MPa)
06 | 10 | 35 MPa | 40 l/min | 0.008 ml | 105 | 105 | 105
Downloads (available)
Data sheet (ProductSerieSheet-P506HD-en.pdf) and User Instruction (multifaster instructions).
Warnings
Product may contain materials (e.g. lead, nickel) that are known to cause cancer or reproductive harm.
Technical characteristics / specifications
P506HD Multifaster
Description
New Multifaster, flat valve type, rated 350 bar (35 MPa), 4 lines, size 06 (10 mm / 3/8 in). Connection and disconnection by lever. Connection under pressure allowed (residual). Right-hand or left-hand lever variants with safety lock available.
Applications
- Construction Equipment
- Industrial
- Oil & Gas
- Vehicles & Road Machines
- Forestry
- Mining
Items - Female
- PartNumber: P506HD-D-0000-4-AFC
- 4 x Couplings 3/8 in: BSPP 3/8 in FEMALE - ISO 1179-1
- Flow Rate: 40 l/min at 0.2 MPa
- Seals: NBR & PUR
- Weight: 3800 g
- Features: Right-hand lever and safety lock
- PartNumber: P506HD-S-0000-4-AFC
- 4 x Couplings 3/8 in: BSPP 3/8 in FEMALE - ISO 1179-1
- Flow Rate: 40 l/min at 0.2 MPa
- Seals: NBR & PUR
- Weight: 3800 g
- Features: Left-hand lever and safety lock
Items - Male
- PartNumber: P506HD-0000-4-AMC
- 4 x Couplings 3/8 in: BSPP 3/8 in FEMALE - ISO 1179-1
- Flow Rate: 40 l/min at 0.2 MPa
- Seals: NBR & PUR
- Weight: 1700 g
Technical table - Burst pressure / Performance (representative)
Dash Size | Size (mm) | Working Pressure | Flow Rate (l/min) | Spillage (ml) | Male Burst Pressure (MPa) | Female Burst Pressure (MPa) | Male+Female (MPa)
06 | 10 | 35 MPa | 40 l/min | 0.008 ml | 105 | 105 | 105
Downloads (available)
Data sheet (ProductSerieSheet-P506HD-en.pdf) and User Instruction (multifaster instructions).
Warnings
Product may contain materials (e.g. lead, nickel) that are known to cause cancer or reproductive harm.
Technical characteristics / specifications
- Material: Aluminium & Steel
- Seals: NBR & PUR
- Working temperatures: -25 °C to 100 °C
- Surface treatment: MATE 500 (CrIII) & Paint
- Series Interchange: MultiFaster
- Valve Type: Flat
- Connection: Lever
- Disconnection: Lever
- Connection Under Pressure: Allowed (Residual)
- Working Pressure (nominal): 35 MPa (350 bar)
- Flow Rate (typical): 40 l/min at 0.2 MPa
- Spillage (typical): 0.008 ml (size 06)
