Rapid multi coupling PH406

threadedfor hydraulic oil

Overview

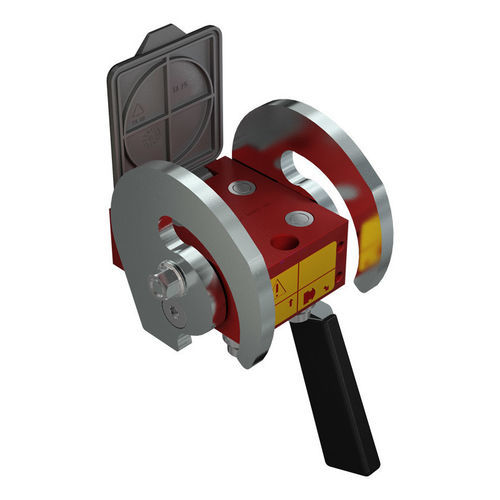

New multi-connection system specifically designed to withstand high pressure applications (46 MPa). Equipped with 4 lines size 06. Available in two surface versions: red paint plates with stainless steel handle and cams, or black cataphoresis plates with Zn-Ni plated carbon steel handle and cams (suffix S).

Items (examples)
Female - PH406-4-38G F C
Part number: PH406-4-38G F C
Specs:
4 x Couplings 3/8": BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 35 l/min at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Weight: 5188.2 g

Female - PH406S-4-38G F C
Part number: PH406S-4-38G F C
Specs:
4 x Couplings 3/8": BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 35 l/min at 0.2 MPa
Seals: NBR & PUR
Weight: 5188 g

Male - 3PH406-4-38G MC
Part number: 3PH406-4-38G MC
Specs:
4 x Couplings 3/8": BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 35 l/min at 0.2 MPa
Temperature: -25 °C to 100 °C
Seals: NBR & PUR
Weight: 2523 g

Male - 3PH406S-4-38G M C
Part number: 3PH406S-4-38G M C
Specs:
4 x Couplings 3/8": BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 35 l/min at 0.2 MPa
Seals: NBR & PUR
Weight: 2523 g

Images
Product images show the MultiFaster PH406 series with multiple views and installation/quotation imagery.

Downloads
Data sheet available for PH406 (product data sheet PDF).

Technical characteristics / specifications

• Series: MultiFaster (PH406)
• Size: 06 (body size 10 mm / 3/8")
• Working pressure: 46 MPa
• Burst pressure (male / female / combined): 138 MPa
• Flow rate: 35 l/min at 0.2 MPa
• Spillage: 0.008 ml
• Temperature range: -25 °C to 100 °C
• Materials: Aluminium & Steel
• Seals: NBR & PUR
• Surface treatment: MATE 1000 (ZnNi) & Paint (Red paint plates or Black cataphoresis plates with Zn-Ni plated carbon steel handle and cams)
• Valve type: Flat
• Connection: Lever
• Disconnection: Lever
• Connection under pressure: Allowed (residual)
• Configuration: 4 lines
